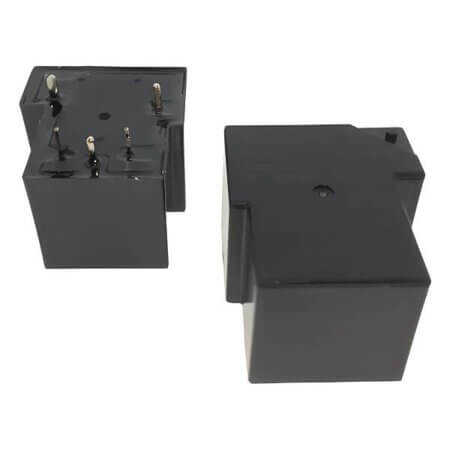

JQX-15F-T90-1H-12V-DRG RELAY 30A 12VDC 1PNC (JTN) 5PIN DRAGON

JQX-15F-T90-1H-12V-DRG RELAY 30A 12VDC 1PNC (JTN) 5PIN DRAGON Description

JQX-15F-T90-1H-12V-DRG RELAY 30A 12VDC 1PNC (JTN) 5PIN DRAGON JQX-15F-T90-1H-12V-DRG is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 240VAC/28VDC and coil resistance of 160 Ohms. Features a coil power of 900mW and operates within a temperature range of nan.Compact design with dimensions: length 32.20mm, width 27.00mm, and height 20.10mm.Manufactured by ASIA DRAGON and compliant with ROHS standards. Packaged as TRAY for convenience.

JQX-15F-T90-1H-12V-DRG RELAY 30A 12VDC 1PNC (JTN) 5PIN DRAGON Technical Specifications

• Manufacturer: ASIA DRAGON
• RelayType: Relay Power
• Series: JQX-15F
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 30A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent:
• ContactVoltage: 240VAC/28VDC
• CoilResistance: 160 Ohms
• CoilPower: 900mW
• OperatingTemperature:
• NumberofPins: 5 Pin
• Length: 32.20mm
• Width: 27.00mm
• Height: 20.10mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
