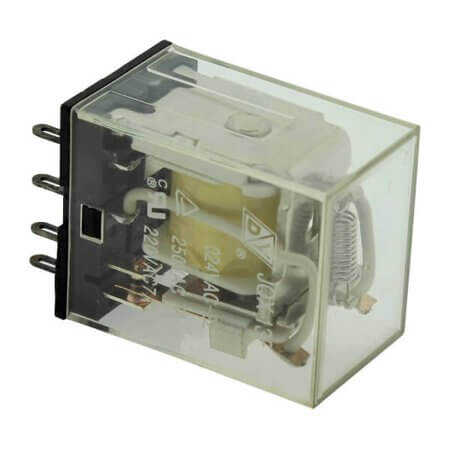

JQX-13F-24VAC-2Z RELAY 7A 24VAC 4PNC (HJ4) DRAGON

JQX-13F-24VAC-2Z RELAY 7A 24VAC 4PNC (HJ4) DRAGON Description

JQX-13F-24VAC-2Z RELAY 7A 24VAC 4PNC (HJ4) DRAGON JQX-13F-24VAC-2Z is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 168 Ohms. Features a coil power of 900mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 27.50mm, width 21.00mm, and height 35.50mm.Manufactured by ASIA DRAGON and compliant with nan standards. Packaged as TRAY for convenience.

JQX-13F-24VAC-2Z RELAY 7A 24VAC 4PNC (HJ4) DRAGON Technical Specifications

• Manufacturer: ASIA DRAGON
• RelayType: Relay General
• Series: JQX-13F
• MountingType: Socket
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 3A
• ContactCurrent(Max): 5A
• CoilVoltage: 24VAC
• CoilCurrent:
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 168 Ohms
• CoilPower: 900mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 8 Pin
• Length: 27.50mm
• Width: 21.00mm
• Height: 35.50mm
• Rohs:
• Packaging: TRAY

---

You can click for product datasheet.
