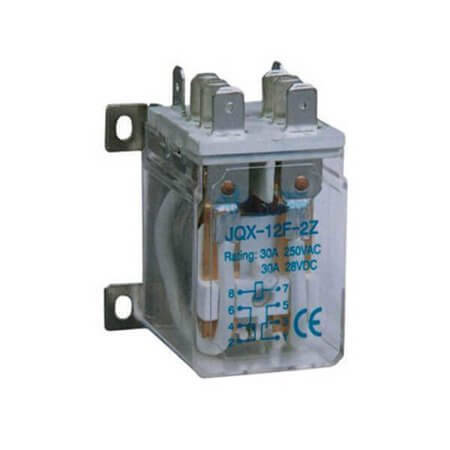

JQX-12F-2Z-DC24V RELAY 12A 24VDC DPDT (2FormC) QUICK TERM.MOUNTING

JQX-12F-2Z-DC24V RELAY 12A 24VDC DPDT (2FormC) QUICK TERM.MOUNTING Description

JQX-12F-2Z-DC24V RELAY 12A 24VDC DPDT (2FormC) QUICK TERM.MOUNTING JQX-12F-2Z-DC24V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/28VDC and coil resistance of 230 Ohms. Features a coil power of 2.50W and operates within a temperature range of nan.Compact design with dimensions: length 48.00mm, width 45.80mm, and height 38.50mm.Manufactured by ASIA DRAGON and compliant with ROHS standards. Packaged as TRAY for convenience.

JQX-12F-2Z-DC24V RELAY 12A 24VDC DPDT (2FormC) QUICK TERM.MOUNTING Technical Specifications

• Manufacturer: ASIA DRAGON
• RelayType: Relay Power
• Series: JQX-12F
• MountingType: Socket
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 30A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent:
• ContactVoltage: 250VAC/28VDC
• CoilResistance: 230 Ohms
• CoilPower: 2.50W
• OperatingTemperature:
• NumberofPins: 8 Pin
• Length: 48.00mm
• Width: 45.80mm
• Height: 38.50mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
