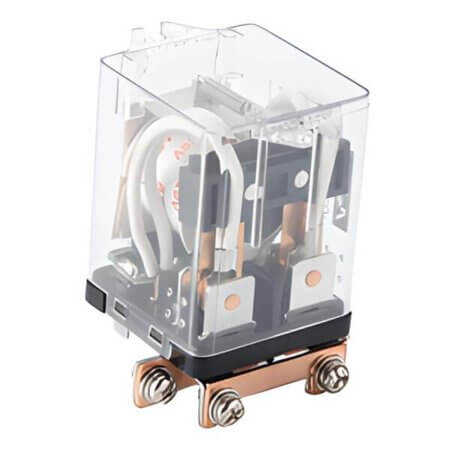

JQX-120F-1Z-AC220V RELAY 120A 220VAC 1PNC SCREW MOUNTING DRAGON

JQX-120F-1Z-AC220V RELAY 120A 220VAC 1PNC SCREW MOUNTING DRAGON Description

JQX-120F-1Z-AC220V RELAY 120A 220VAC 1PNC SCREW MOUNTING DRAGON JQX-120F-1Z-AC220V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 11K Ohms. Features a coil power of 4.40VA and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 65.00mm, width 51.00mm, and height 84.00mm.Manufactured by ASIA DRAGON and compliant with ROHS standards. Packaged as TUBE for convenience.

JQX-120F-1Z-AC220V RELAY 120A 220VAC 1PNC SCREW MOUNTING DRAGON Technical Specifications

• Manufacturer: ASIA DRAGON
• RelayType: Relay Power
• Series: JQX-120F
• MountingType: Screw Mount
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 100A
• ContactCurrent(Max):
• CoilVoltage: 220VAC
• CoilCurrent:
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 11K Ohms
• CoilPower: 4.40VA
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 5 Pin
• Length: 65.00mm
• Width: 51.00mm
• Height: 84.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
