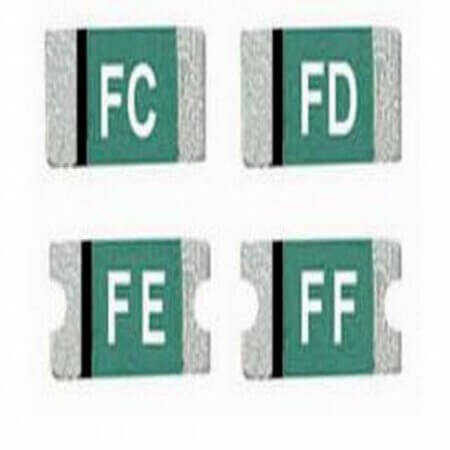

JK-NSMD010 THERMISTOR PTC RESETTABLE FUSE 1206 100mA 60V SMT

JK-NSMD010 THERMISTOR PTC RESETTABLE FUSE 1206 100mA 60V SMT Description

JK-NSMD010 THERMISTOR PTC RESETTABLE FUSE 1206 100mA 60V SMT The JK-NSMD010, manufactured by ZONKAS, is a high-performance PTC resettable fuse designed for thermistor ptc resettable fuse 1206 100ma 60v smt. It offers reliable overcurrent protection with a maximum voltage rating of 60V. The fuse features a trip time of 1s, ensuring fast response to overcurrent events. Its compact dimensions of 3.20mm x 1.60mm x N/A allow for easy integration into various applications. Operating within a temperature range of -40°C~+85°C, it performs reliably in diverse environments. As a rohs-compliant product, it meets stringent environmental and safety standards. Packaged in tape&reel format, it ensures secure handling and storage. With its robust design and advanced features, the JK-NSMD010 is an excellent choice for professionals seeking reliable PTC fuse solutions.

JK-NSMD010 THERMISTOR PTC RESETTABLE FUSE 1206 100mA 60V SMT Technical Specifications

• Manufacturer: ZONKAS
• MountingType: SMT
• Package/Case: 1206 (3216 Metric)
• Pitch:
• Resistance(Min): 1.6 Ohms
• Resistance(Max): 15 Ohms
• Current-Hold: 100mA
• Current-Trip: 250mA
• Current(Max): 100A
• Voltage(Max): 60V
• Time-Trip: 1s
• Applications:
• Diameter:
• Length: 3.20mm
• Width: 1.60mm
• Height:
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
