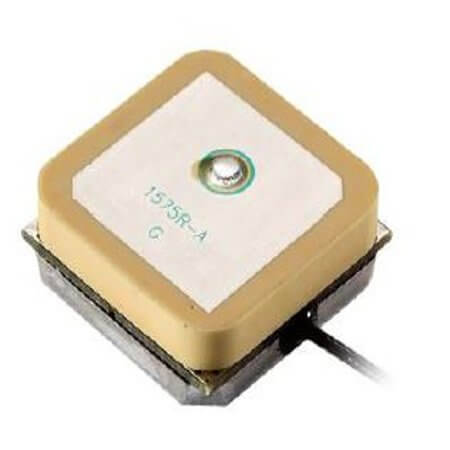

JCN054 ANTENNA GPS/GNSS CERAMIC PATCH 12mA 5VDC 5MHz

JCN054 ANTENNA GPS/GNSS CERAMIC PATCH 12mA 5VDC 5MHz Description

JCN054 ANTENNA GPS/GNSS CERAMIC PATCH 12mA 5VDC 5MHz The product JCN054 (ANTENNA GPS/GNSS CERAMIC PATCH 12mA 5VDC 5MHz) is a versatile RF antenna designed for optimal signal transmission and reception. Featuring a CERAMIC PATCH type design with an impedance of 50 Ohm, it supports a wide frequency range of 1575.42MHz. The antenna offers a gain of 15±2dBi and a VSWR of 1.5, ensuring efficient performance. Suitable for GPS/GLONASS/BEIDOU, it has a compact height of N/A and operates within a temperature range of -40°C~+85°C. Compliant with ROHS standards, it is packaged in N/A format, making it ideal for modern communication systems.

JCN054 ANTENNA GPS/GNSS CERAMIC PATCH 12mA 5VDC 5MHz Technical Specifications

• Manufacturer: JC ANTENNA
• Gender: i-PEX FEMALE
• AntennaType: CERAMIC PATCH
• Impedance: 50 Ohm
• FrequencyRange: 1575.42MHz
• Gain: 15±2dBi
• VSWR: 1.5
• Applications: GPS/GLONASS/BEIDOU
• Height:
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging:

---

You can click for product datasheet.
