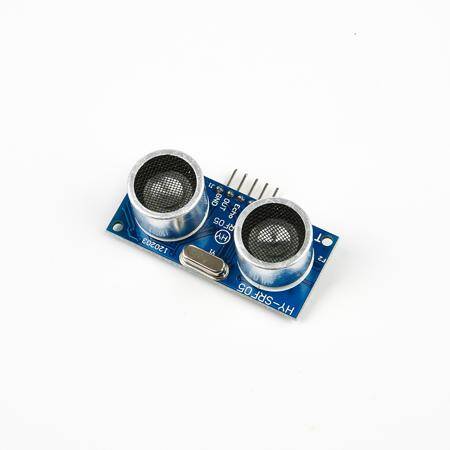

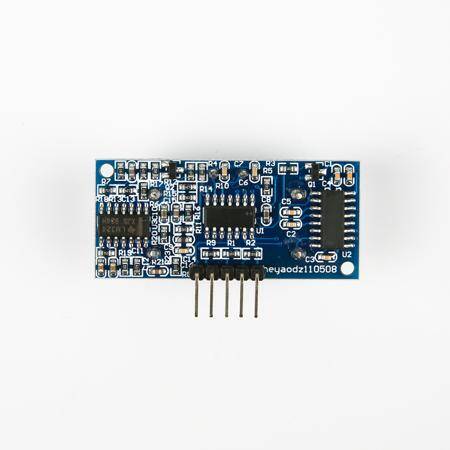

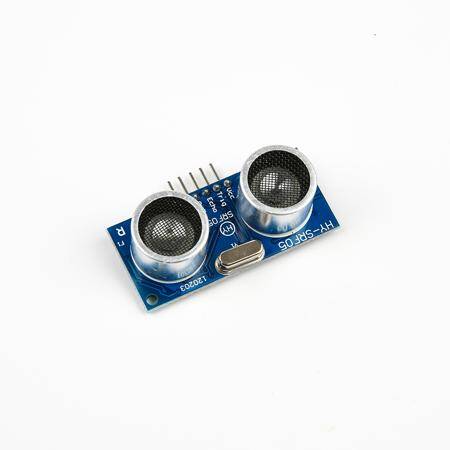

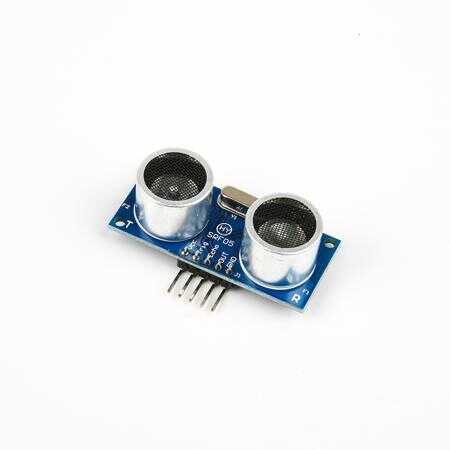

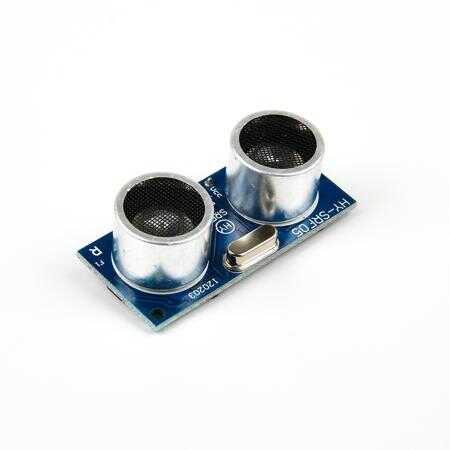

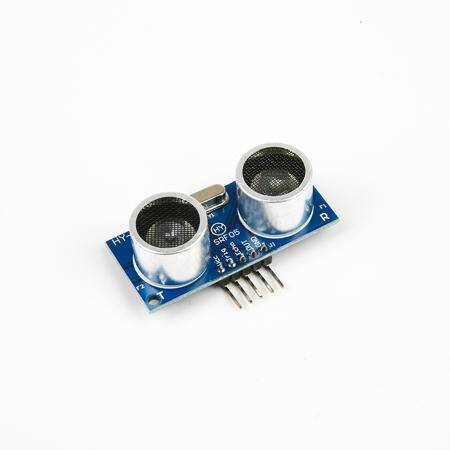

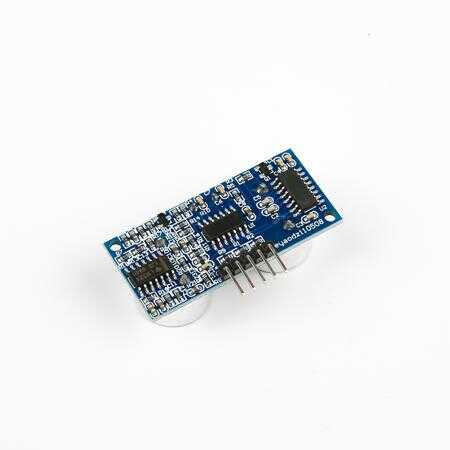

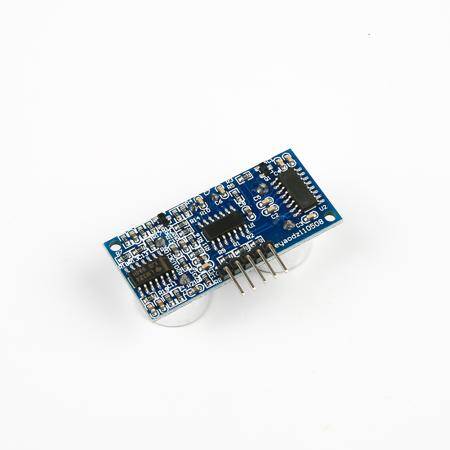

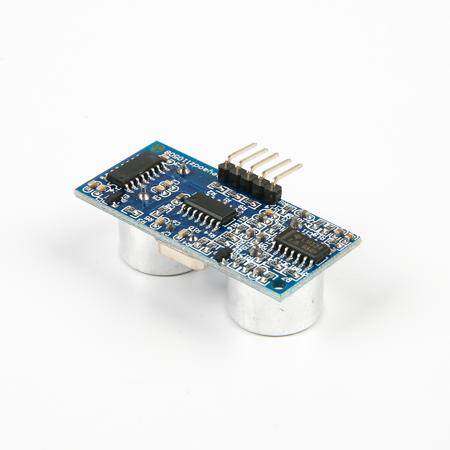

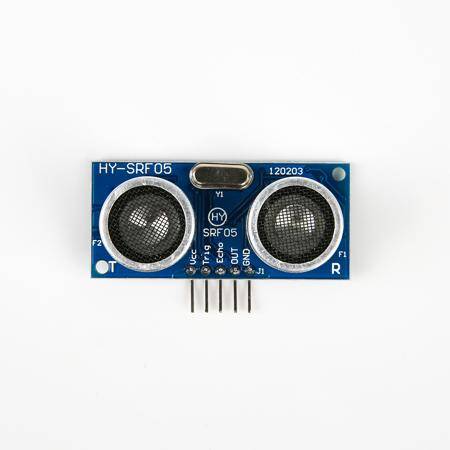

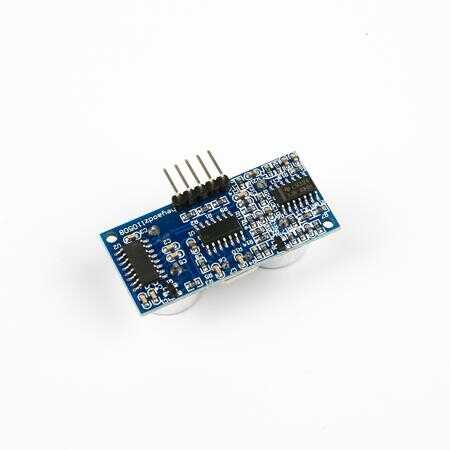

HY-SRF05 Ultrasonic Sensor 5 Pin

HY-SRF05 Ultrasonic Sensor Description

The HY-SRF05 Ultrasonic Sensor is a high-performance distance measurement module designed for robotics, IoT, and embedded systems. Featuring a 5-pin interface, it offers both single-pin and dual-pin trigger modes for flexible operation. With its extended range and high accuracy, this sensor is ideal for obstacle detection, level monitoring, and distance measurement applications.

HY-SRF05 Ultrasonic Sensor Features

• Dual Trigger Modes: Supports single-pin and dual-pin modes for versatile operation.
• Extended Range: Measures distances from 2cm to 450cm.
• High Accuracy: Provides precise measurements with ±3mm accuracy.
• 5-Pin Interface: Includes VCC, GND, Trigger, Echo, and Mode pins for enhanced functionality.
• Energy Efficient: Operates with low power consumption.

HY-SRF05 Ultrasonic Sensor Specifications

• Operating Voltage: 5V DC
• Current Consumption: 15mA
• Measuring Range: 2cm to 450cm
• Accuracy: ±3mm
• Frequency: 40kHz ultrasonic signal
• Interface: 5-pin (VCC, GND, Trigger, Echo, Mode)
• Dimensions: Compact and lightweight

HY-SRF05 Ultrasonic Sensor Applications

• Robotics: Used for obstacle avoidance and navigation in robots.
• IoT Devices: Adds distance measurement capabilities to smart systems.
• Level Monitoring: Suitable for measuring liquid or material levels in containers.
• DIY Projects: Ideal for prototyping and custom distance measurement applications.
• Educational Use: Perfect for teaching about ultrasonic technology and sensor integration.
