HT-MM900AE-6K-JE-27M0000 CRYSTAL OSCILLATOR 27MHz ±50ppm (Stability) CMOS 5

HT-MM900AE-6K-JE-27M0000 CRYSTAL OSCILLATOR 27MHz ±50ppm (Stability) CMOS 5 Description

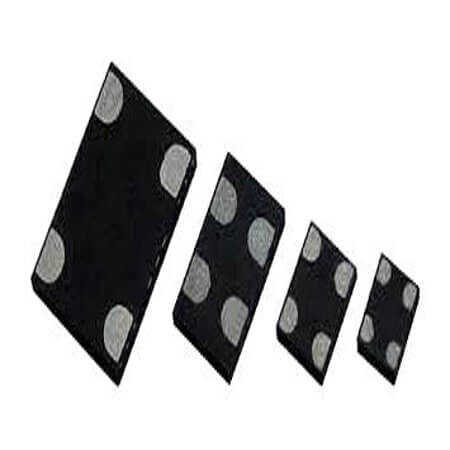

HT-MM900AE-6K-JE-27M0000 CRYSTAL OSCILLATOR 27MHz ±50ppm (Stability) CMOS 5 The product HT-MM900AE-6K-JE-27M0000 (CRYSTAL OSCILLATOR 27MHz ±50ppm (Stability) CMOS 5) is a high-precision crystal oscillator designed for reliable frequency control. Manufactured by VECTRON, it offers a frequency stability of ±50PPM and operates at a supply voltage of 1.8V. The output type is CMOS, making it versatile for various N/A applications. The compact design measures 3.20mm x 2.50mm x 0.75mm and performs reliably within a temperature range of -40°C~+85°C. Packaged in TAPE&REEL format and compliant with ROHS standards, it is an ideal choice for modern electronic systems.

HT-MM900AE-6K-JE-27M0000 CRYSTAL OSCILLATOR 27MHz ±50ppm (Stability) CMOS 5 Technical Specifications

• Manufacturer: VECTRON
• MountingType: SMT
• Series: HT-MM900A
• Package/Case: 4-SMD
• Frequency: 27MHz
• Capacitance:
• FrequencyTolerance:
• FrequencyStability: ±50PPM
• SupplyVoltage: 1.8V
• Output: CMOS
• Applications:
• Length: 3.20mm
• Width: 2.50mm
• Height: 0.75mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
