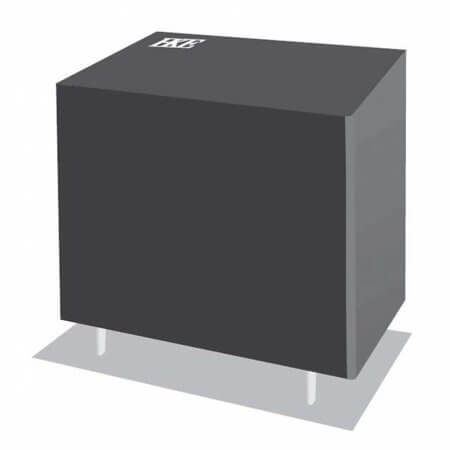

HRS3-S-DC12V-C RELAY 3A 12V 1FORM-C HKE

HRS3-S-DC12V-C RELAY 3A 12V 1FORM-C HKE Description

HRS3-S-DC12V-C RELAY 3A 12V 1FORM-C HKE HRS3-S-DC12V-C is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/28VDC and coil resistance of 320 Ohms. Features a coil power of 450mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 18.20mm, width 10.00mm, and height 14.70mm.Manufactured by HKE and compliant with ROHS standards. Packaged as TUBE for convenience.

HRS3-S-DC12V-C RELAY 3A 12V 1FORM-C HKE Technical Specifications

• Manufacturer: HKE
• RelayType: Relay Power
• Series: HRS3
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 3A
• ContactCurrent(Max): 5A
• CoilVoltage: 12VDC
• CoilCurrent:
• ContactVoltage: 250VAC/28VDC
• CoilResistance: 320 Ohms
• CoilPower: 450mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 18.20mm
• Width: 10.00mm
• Height: 14.70mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
