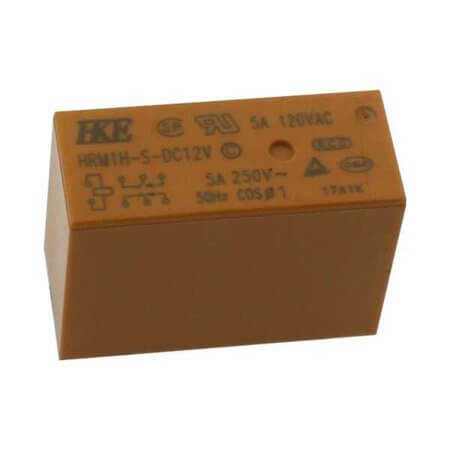

HRM1H-S-DC12V RELAY 5A 12V

HRM1H-S-DC12V RELAY 5A 12V Description

HRM1H-S-DC12V RELAY 5A 12V HRM1H-S-DC12V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 200 Ohms. Features a coil power of 720mW and operates within a temperature range of -30°C~+70°C.Compact design with dimensions: length 29.00mm, width 12.60mm, and height 20.80mm.Manufactured by HKE and compliant with ROHS standards. Packaged as TRAY for convenience.

HRM1H-S-DC12V RELAY 5A 12V Technical Specifications

• Manufacturer: HKE
• RelayType: Relay Power
• Series: HRM1H
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom):
• ContactCurrent(Max): 5A
• CoilVoltage: 12VDC
• CoilCurrent:
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 200 Ohms
• CoilPower: 720mW
• OperatingTemperature: -30°C~+70°C
• NumberofPins: 8 Pin
• Length: 29.00mm
• Width: 12.60mm
• Height: 20.80mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
