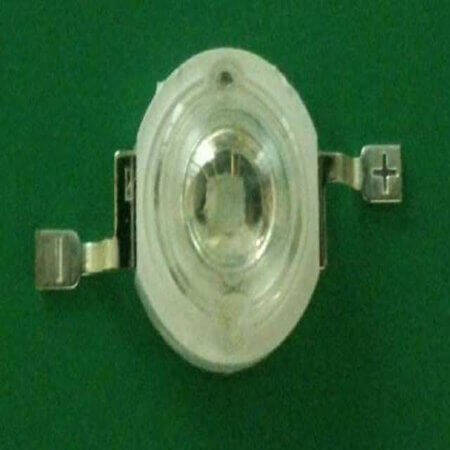

HLEF42B1NAVS LED POWER EMITTER BLUE 460-470NM min.18,1LM@350mA

HLEF42B1NAVS LED POWER EMITTER BLUE 460-470NM min.18,1LM@350mA Description

The HLEF42B1NAVS LED POWER EMITTER BLUE 460-470NM min.18,1LM@350mA The HLEF42B1NAVS is a high-quality product offering LED POWER EMITTER BLUE 460-470NM min.18,1LM@350mA. With a shrink ratio of N/A and -20°C~+85°C operating temperature, it provides reliability in various applications.

HLEF42B1NAVS LED POWER EMITTER BLUE 460-470NM min.18,1LM@350mA Technical Specifications

• Manufacturer: HONGLITRONIC
• Color: Blue
• Type   byPower: Mid Power
• Series:
• MountingType: SMT
• Package   /Case: 5252
• MountingStyle: Top View
• MaxPower: 1.30W
• Wavelength: 460-470nm
• Luminous   Flux(25°C): 24lm
• Luminous   Flux(85°C):
• LuminousIntensity:
• ForwardVoltage: 2.80-3.40V
• Forward   Current: 400mA
• TestCurrent: 350mA
• ViewAngle: 120°-140°
• ThermalResistance:
• Diameter: 8.00mm
• Length:
• Width:
• Height: 5.20mm
• OperatingTemperature: -20°C~+85°C
• ROHS: ROHS
• Packaging: TAPE&REEL
• ShrinkRatio: N/A
