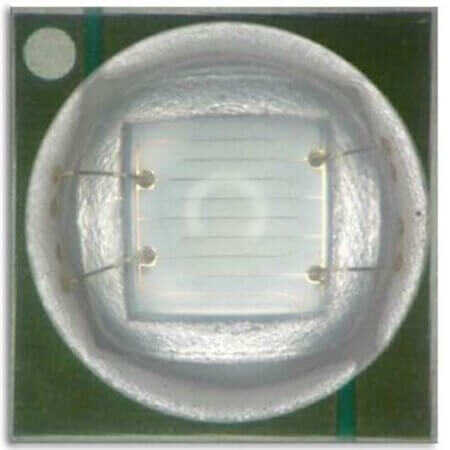

HLC3535K2G3EA LED POWER GREEN 520-530NM min.130LM@700mA

HLC3535K2G3EA LED POWER GREEN 520-530NM min.130LM@700mA Description

The HLC3535K2G3EA LED POWER GREEN 520-530NM min.130LM@700mA The HLC3535K2G3EA is a high-quality product offering LED POWER GREEN 520-530NM min.130LM@700mA. With a shrink ratio of N/A and -20°C~+65°C operating temperature, it provides reliability in various applications.

HLC3535K2G3EA LED POWER GREEN 520-530NM min.130LM@700mA Technical Specifications

• Manufacturer: HONGLITRONIC
• Color: Green
• Type   byPower: High Power
• Series:
• MountingType: SMT
• Package   /Case: 3535
• MountingStyle: Top View
• MaxPower: 3W
• Wavelength: 520-530nm
• Luminous   Flux(25°C): 130lm
• Luminous   Flux(85°C):
• LuminousIntensity:
• ForwardVoltage: 2.80V
• Forward   Current: 800mA
• TestCurrent: 700mA
• ViewAngle: 140°
• ThermalResistance:
• Diameter:
• Length: 3.45mm
• Width: 3.45mm
• Height: 1.90mm
• OperatingTemperature: -20°C~+65°C
• ROHS: ROHS
• Packaging: TAPE&REEL
• ShrinkRatio: N/A
