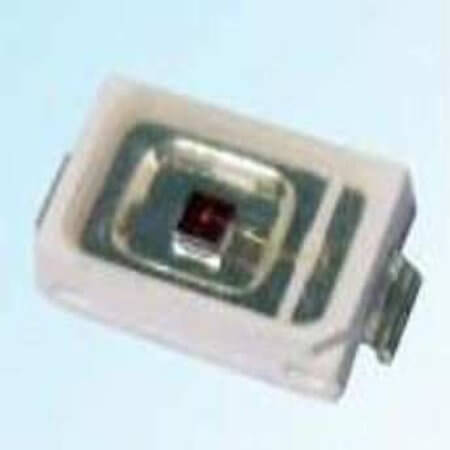

HLA5730D34BC-S1-08 LED SMD 5730 BLUE 452-462NM min.1300MCD@150mA

HLA5730D34BC-S1-08 LED SMD 5730 BLUE 452-462NM min.1300MCD@150mA Description

The HLA5730D34BC-S1-08 LED SMD 5730 BLUE 452-462NM min.1300MCD@150mA The HLA5730D34BC-S1-08 is a high-quality product offering LED SMD 5730 BLUE 452-462NM min.1300MCD@150mA. With a shrink ratio of N/A and -40°C~+85°C operating temperature, it provides reliability in various applications.

HLA5730D34BC-S1-08 LED SMD 5730 BLUE 452-462NM min.1300MCD@150mA Technical Specifications

• Manufacturer: HONGLITRONIC
• Color: Blue
• Type  byPower: Low Power
• Series:
• MountingType: SMT
• Package  /Case: 5730
• MountingStyle: Top View
• MaxPower: 500mW
• Wavelength: 452-462nm
• Luminous  Flux(25°C):
• Luminous  Flux(85°C):
• LuminousIntensity: 1cd
• ForwardVoltage: 3.00-3.80V
• Forward  Current: 200mA
• TestCurrent: 150mA
• ViewAngle: 120°
• ThermalResistance:
• Diameter:
• Length: 5.70mm
• Width: 3.00mm
• Height: 0.90mm
• OperatingTemperature: -40°C~+85°C
• ROHS: ROHS
• Packaging: TAPE&REEL
• ShrinkRatio: N/A
