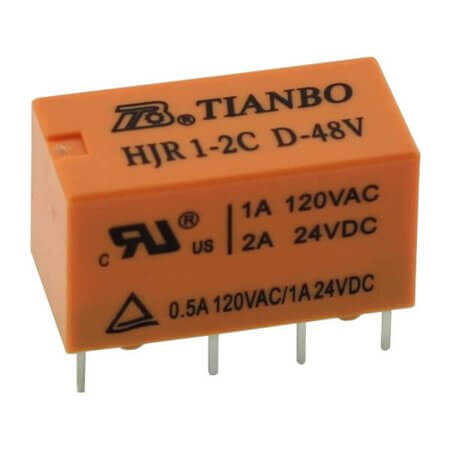

HJR1-2C-D-48VDC-S-ZY RELAY 2A 48VDC 2PNC TELECOM (DS2) TYPE TIANBO

HJR1-2C-D-48VDC-S-ZY RELAY 2A 48VDC 2PNC TELECOM (DS2) TYPE TIANBO Description

HJR1-2C-D-48VDC-S-ZY RELAY 2A 48VDC 2PNC TELECOM (DS2) TYPE TIANBO HJR1-2C-D-48VDC-S-ZY is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 120VAC/24VDC and coil resistance of 6.40K Ohms. Features a coil power of 360mW and operates within a temperature range of -30°C~+85°C.Compact design with dimensions: length 20.50mm, width 10.00mm, and height 11.80mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as BULK for convenience.

HJR1-2C-D-48VDC-S-ZY RELAY 2A 48VDC 2PNC TELECOM (DS2) TYPE TIANBO Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay Telecom
• Series: HJR1-2C
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 2A
• ContactCurrent(Max):
• CoilVoltage: 48VDC
• CoilCurrent: 85mA
• ContactVoltage: 120VAC/24VDC
• CoilResistance: 6.40K Ohms
• CoilPower: 360mW
• OperatingTemperature: -30°C~+85°C
• NumberofPins: 8 Pin
• Length: 20.50mm
• Width: 10.00mm
• Height: 11.80mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
