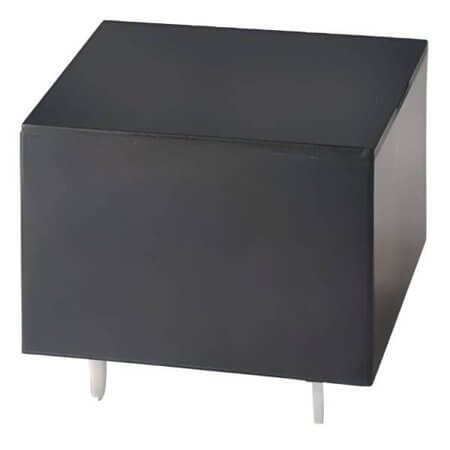

HJR-3FF-S-H/12VDC RELAY POWER 10A 12VDC PCB TYPE (JS1) 4PIN TIANBO

HJR-3FF-S-H/12VDC RELAY POWER 10A 12VDC PCB TYPE (JS1) 4PIN TIANBO Description

HJR-3FF-S-H/12VDC RELAY POWER 10A 12VDC PCB TYPE (JS1) 4PIN TIANBO HJR-3FF-S-H/12VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 240VAC and coil resistance of 400 Ohms. Features a coil power of 360mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 19.00mm, width 15.40mm, and height 15.50mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as TRAY for convenience.

HJR-3FF-S-H/12VDC RELAY POWER 10A 12VDC PCB TYPE (JS1) 4PIN TIANBO Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay Power
• Series: HJR-3FF
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 12A
• ContactCurrent(Max): 15A
• CoilVoltage: 12VDC
• CoilCurrent: 30mA
• ContactVoltage: 240VAC
• CoilResistance: 400 Ohms
• CoilPower: 360mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 4 Pin
• Length: 19.00mm
• Width: 15.40mm
• Height: 15.50mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
