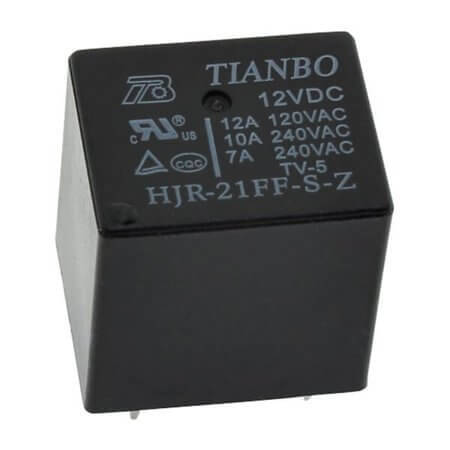

HJR-21FF-S-Z-12VDC RELAY 15A 12VDC 1FormC

HJR-21FF-S-Z-12VDC RELAY 15A 12VDC 1FormC Description

HJR-21FF-S-Z-12VDC RELAY 15A 12VDC 1FormC HJR-21FF-S-Z-12VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 240VAC and coil resistance of 400 Ohms. Features a coil power of 360mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 20.30mm, width 16.60mm, and height 20.20mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as TUBE for convenience.

HJR-21FF-S-Z-12VDC RELAY 15A 12VDC 1FormC Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay Power
• Series: HJR-21FF
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 10A
• ContactCurrent(Max): 15A
• CoilVoltage: 12VDC
• CoilCurrent: 30mA
• ContactVoltage: 240VAC
• CoilResistance: 400 Ohms
• CoilPower: 360mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 20.30mm
• Width: 16.60mm
• Height: 20.20mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
