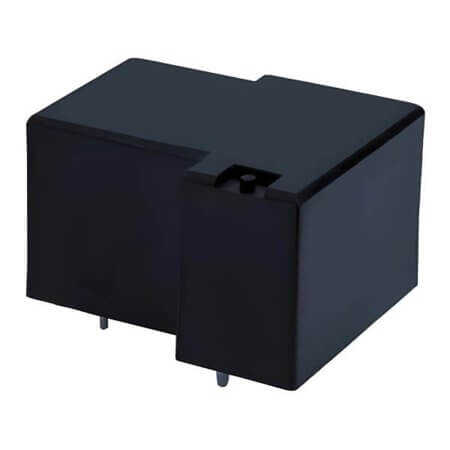

HJQ-15F-S-H/24VDC RELAY POWER 30A 24VDC 1FormA PCB TYPE

HJQ-15F-S-H/24VDC RELAY POWER 30A 24VDC 1FormA PCB TYPE Description

HJQ-15F-S-H/24VDC RELAY POWER 30A 24VDC 1FormA PCB TYPE HJQ-15F-S-H/24VDC is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 240VAC and coil resistance of 620 Ohms. Features a coil power of 930mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 32.00mm, width 27.40mm, and height 19.20mm.Manufactured by TIANBO and compliant with ROHS standards. Packaged as TUBE for convenience.

HJQ-15F-S-H/24VDC RELAY POWER 30A 24VDC 1FormA PCB TYPE Technical Specifications

• Manufacturer: TIANBO
• RelayType: Relay Power
• Series: HJQ-15F
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 25A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 39mA
• ContactVoltage: 240VAC
• CoilResistance: 620 Ohms
• CoilPower: 930mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 32.00mm
• Width: 27.40mm
• Height: 19.20mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
