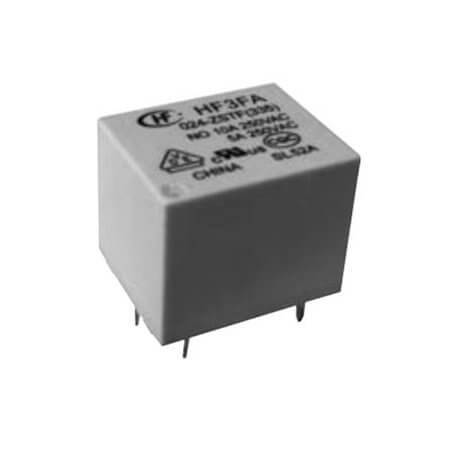

HF3FA/012-ZST RELAY POWER 10A 12VDC SPDT (1 Form C)

HF3FA/012-ZST RELAY POWER 10A 12VDC SPDT (1 Form C) Description

HF3FA/012-ZST RELAY POWER 10A 12VDC SPDT (1 Form C) HF3FA/012-ZST is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC/28VDC and coil resistance of 400 Ohms. Features a coil power of 360mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 19.00mm, width 15.50mm, and height 15.50mm.Manufactured by HONGFA and compliant with ROHS standards. Packaged as TRAY for convenience.

HF3FA/012-ZST RELAY POWER 10A 12VDC SPDT (1 Form C) Technical Specifications

• Manufacturer: HONGFA
• RelayType: Relay Power
• Series: HF3FA
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 10A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent:
• ContactVoltage: 277VAC/28VDC
• CoilResistance: 400 Ohms
• CoilPower: 360mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 19.00mm
• Width: 15.50mm
• Height: 15.50mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
