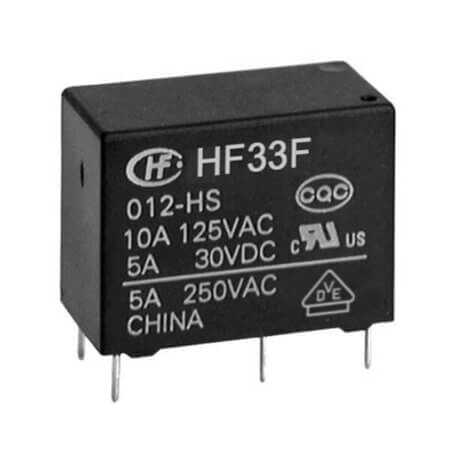

HF33F/005-Z3 RELAY POWER 10A 5VDC 1FormC HONGFA

HF33F/005-Z3 RELAY POWER 10A 5VDC 1FormC HONGFA Description

HF33F/005-Z3 RELAY POWER 10A 5VDC 1FormC HONGFA HF33F/005-Z3 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 55 Ohms. Features a coil power of 450mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 20.50mm, width 10.20mm, and height 15.70mm.Manufactured by HONGFA and compliant with ROHS standards. Packaged as TRAY for convenience.

HF33F/005-Z3 RELAY POWER 10A 5VDC 1FormC HONGFA Technical Specifications

• Manufacturer: HONGFA
• RelayType: Relay Power
• Series: HF33F
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max): 10A
• CoilVoltage: 5VDC
• CoilCurrent:
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 55 Ohms
• CoilPower: 450mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 5 Pin
• Length: 20.50mm
• Width: 10.20mm
• Height: 15.70mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
