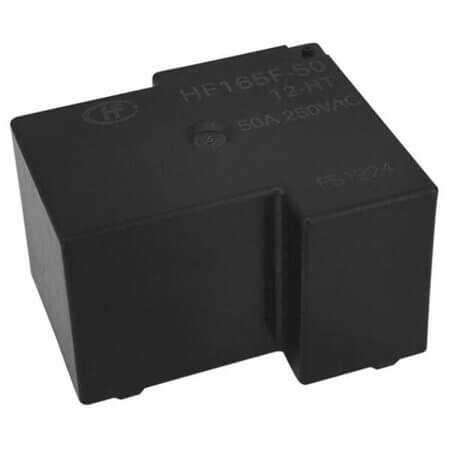

HF165F-50/12-HT RELAY POWER 50A 12VDC SPST-NO THT

HF165F-50/12-HT RELAY POWER 50A 12VDC SPST-NO THT Description

HF165F-50/12-HT RELAY POWER 50A 12VDC SPST-NO THT HF165F-50/12-HT is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC - Max and coil resistance of 120 Ohms. Features a coil power of 1.20W and operates within a temperature range of -40°C~+105°C.Compact design with dimensions: length 32.20mm, width 27.40mm, and height 19.40mm.Manufactured by HONGFA and compliant with ROHS standards. Packaged as TRAY for convenience.

HF165F-50/12-HT RELAY POWER 50A 12VDC SPST-NO THT Technical Specifications

• Manufacturer: HONGFA
• RelayType: Relay Power Small
• Series: HF165F-50
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 50A
• ContactCurrent(Max): 50A
• CoilVoltage: 12VDC
• CoilCurrent:
• ContactVoltage: 250VAC - Max
• CoilResistance: 120 Ohms
• CoilPower: 1.20W
• OperatingTemperature: -40°C~+105°C
• NumberofPins: 4 Pin
• Length: 32.20mm
• Width: 27.40mm
• Height: 19.40mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
