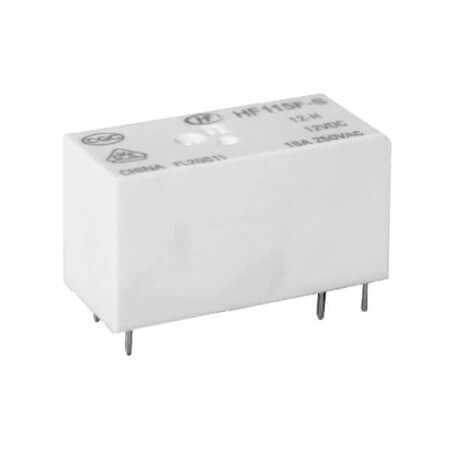

HF115F-S/12-HF(335) RELAY POWER 16A 12VDC SPST-NO (1 Form A)

HF115F-S/12-HF(335) RELAY POWER 16A 12VDC SPST-NO (1 Form A) Description

HF115F-S/12-HF(335) RELAY POWER 16A 12VDC SPST-NO (1 Form A) HF115F-S/12-HF(335) is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 440VAC -Max and coil resistance of 360 Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 29.00mm, width 12.70mm, and height 15.70mm.Manufactured by HONGFA and compliant with ROHS standards. Packaged as TUBE for convenience.

HF115F-S/12-HF(335) RELAY POWER 16A 12VDC SPST-NO (1 Form A) Technical Specifications

• Manufacturer: HONGFA
• RelayType: Relay Power
• Series: HF115F-S
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 16A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent:
• ContactVoltage: 440VAC -Max
• CoilResistance: 360 Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 6 Pin
• Length: 29.00mm
• Width: 12.70mm
• Height: 15.70mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
