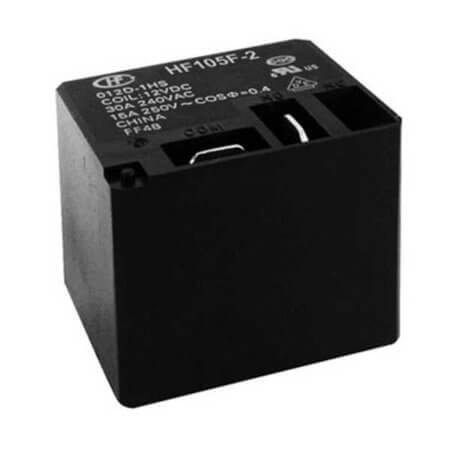

HF105F-2/012D-1HSTF(335) RELAY POWER 30A 12VDC 1FORM A CLASS F

HF105F-2/012D-1HSTF(335) RELAY POWER 30A 12VDC 1FORM A CLASS F Description

HF105F-2/012D-1HSTF(335) RELAY POWER 30A 12VDC 1FORM A CLASS F HF105F-2/012D-1HSTF(335) is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC/28VDC and coil resistance of 155 Ohms. Features a coil power of 900mW and operates within a temperature range of -55°C~+85°C.Compact design with dimensions: length 32.20mm, width 27.50mm, and height 27.80mm.Manufactured by HONGFA and compliant with ROHS standards. Packaged as TRAY for convenience.

HF105F-2/012D-1HSTF(335) RELAY POWER 30A 12VDC 1FORM A CLASS F Technical Specifications

• Manufacturer: HONGFA
• RelayType: Relay Power
• Series: HF105F-2
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 28A
• ContactCurrent(Max): 40A
• CoilVoltage: 12VDC
• CoilCurrent:
• ContactVoltage: 277VAC/28VDC
• CoilResistance: 155 Ohms
• CoilPower: 900mW
• OperatingTemperature: -55°C~+85°C
• NumberofPins: 4 Pin
• Length: 32.20mm
• Width: 27.50mm
• Height: 27.80mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
