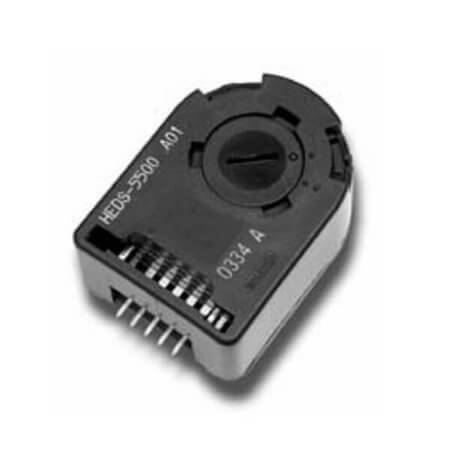

HEDS-5545#A14 ENCODER 500CPR .5MM PUSH 18PULSE 3 CHANNEL

HEDS-5545#A14 ENCODER 500CPR .5MM PUSH 18PULSE 3 CHANNEL Description

HEDS-5545#A14 ENCODER 500CPR .5MM PUSH 18PULSE 3 CHANNEL The product HEDS-5545#A14 (ENCODER 500CPR .5MM PUSH 18PULSE 3 CHANNEL) is an advanced rotary encoder engineered for precise motion control applications. With a resolution of 500 PPR and up to N/A detents, it ensures smooth and accurate operation. Designed with a N/A shaft type, it features a diameter of N/A and a length of N/A, making it versatile for various installation needs. Its output type, Quadrature with Index, combined with a temperature range of -40°C - 100°C, guarantees reliable performance in challenging environments. Manufactured by AVAGO-BROADCOM, this encoder is compliant with RoHS standards and comes in TRAY packaging. Built to deliver exceptional performance, it is the ideal choice for high-precision systems.

HEDS-5545#A14 ENCODER 500CPR .5MM PUSH 18PULSE 3 CHANNEL Technical Specifications

• Manufacturer: AVAGO-BROADCOM
• EncoderType: Optical
• MountingType: Chassis Mount
• OperatingDirection: Vertical
• OperatingVoltage: 5V
• Resolution: 500 PPR
• NumberofDetents:
• WithSwitch: No
• OutputType: Quadrature with Index
• ShaftType:
• ShaftDiameter:
• ShaftLength:
• OperatingTemperature: -40°C - 100°C
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
