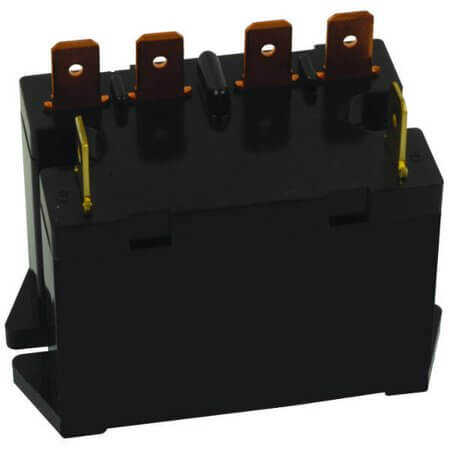

HE2AN-Q-DC24V RELAY POWER 25A 24V 2FormA

HE2AN-Q-DC24V RELAY POWER 25A 24V 2FormA Description

HE2AN-Q-DC24V RELAY POWER 25A 24V 2FormA HE2AN-Q-DC24V is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC/30VDC - Max and coil resistance of 300 Ohms. Features a coil power of 1.92W and operates within a temperature range of nan.Compact design with dimensions: length 60.00mm, width 33.00mm, and height 35.00mm.Manufactured by PANASONIC COMP. and compliant with ROHS standards. Packaged as TRAY for convenience.

HE2AN-Q-DC24V RELAY POWER 25A 24V 2FormA Technical Specifications

• Manufacturer: PANASONIC COMP.
• RelayType: Relay Power
• Series: HE
• MountingType: Chassis Mount
• ContactForm: DPST-NO (2 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 25A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 80mA
• ContactVoltage: 277VAC/30VDC - Max
• CoilResistance: 300 Ohms
• CoilPower: 1.92W
• OperatingTemperature:
• NumberofPins: 6 Pin
• Length: 60.00mm
• Width: 33.00mm
• Height: 35.00mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
