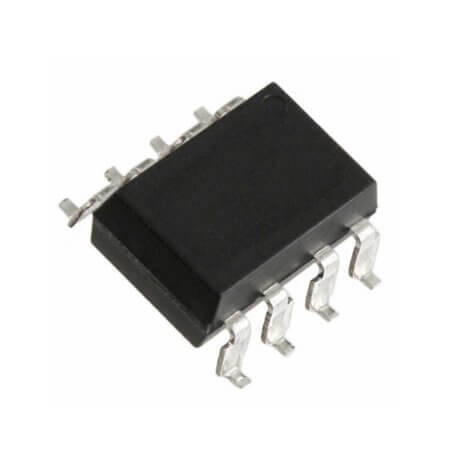

HCPL2631SD IC-2631 OPTOISO 2.5KV 2CH OPEN COLL SMD8

HCPL2631SD IC-2631 OPTOISO 2.5KV 2CH OPEN COLL SMD8 Description

HCPL2631SD IC-2631 OPTOISO 2.5KV 2CH OPEN COLL SMD8 The product HCPL2631SD (IC-2631 OPTOISO 2.5KV 2CH OPEN COLL SMD8) is a high-performance logic-output optocoupler designed for robust electrical isolation and signal transfer. Manufactured by a trusted supplier, it features a propagation delay of 75ns, 75ns, an input type of DC, and an output type of Open Collector. The optocoupler supports an output current of 50mA and an isolation voltage of 2500Vrms, ensuring reliable operation in diverse applications. With an input forward voltage of 1.4V, a supply voltage range of 4.5V to 5.5V, and an operating temperature range of -40°C~+85°C, it is both versatile and durable. Compliant with RoHS standards, this optocoupler is available in TAPE&REEL packaging, making it a reliable choice for modern electronic systems.

HCPL2631SD IC-2631 OPTOISO 2.5KV 2CH OPEN COLL SMD8 Technical Specifications

• Manufacturer: ONS (FAIRCHILD)
• Features: Dual-Channel High Speed 10MBit/s Logic Gate Optocouplers
• MountingType: SMT
• Package/Case: SMD8
• NumberofChannel: 2
• PropagationDelayTime(Low/High): 75ns, 75ns
• InputType: DC
• OutputType: Open Collector
• OutputCurrent: 50mA
• IsolationVoltage: 2500Vrms
• InputForwardVoltage: 1.4V
• SupplyVoltage: 4.5V to 5.5V
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
