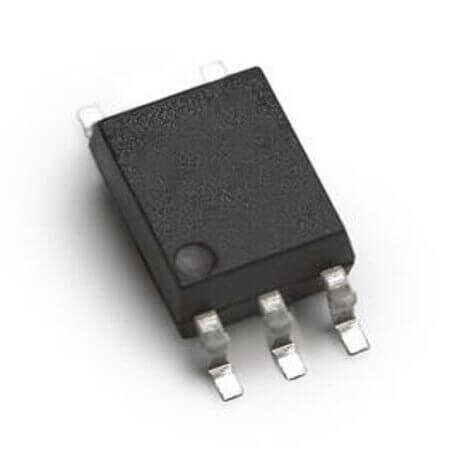

HCPL-M601-000E IC-M601-000E OPTOISOLATOR 3.75KV OPEN COLLECTOR SO

HCPL-M601-000E IC-M601-000E OPTOISOLATOR 3.75KV OPEN COLLECTOR SO Description

HCPL-M601-000E IC-M601-000E OPTOISOLATOR 3.75KV OPEN COLLECTOR SO The product HCPL-M601-000E (IC-M601-000E OPTOISOLATOR 3.75KV OPEN COLLECTOR SO) is a high-performance logic-output optocoupler designed for robust electrical isolation and signal transfer. Manufactured by a trusted supplier, it features a propagation delay of 75ns, 75ns, an input type of DC, and an output type of Open Collector, Schottky Clamped. The optocoupler supports an output current of 50mA and an isolation voltage of 3750Vrms, ensuring reliable operation in diverse applications. With an input forward voltage of 1.5V, a supply voltage range of 4.5V to 5.5V, and an operating temperature range of -40°C~+85°C, it is both versatile and durable. Compliant with RoHS standards, this optocoupler is available in TUBE packaging, making it a reliable choice for modern electronic systems.

HCPL-M601-000E IC-M601-000E OPTOISOLATOR 3.75KV OPEN COLLECTOR SO Technical Specifications

• Manufacturer: AVAGO-BROADCOM
• Features: Small Outline, 5 Lead, High CMR, High Speed, Logic Gate Optocouplers
• MountingType: SMT
• Package/Case: SO6-5
• NumberofChannel: 1
• PropagationDelayTime(Low/High): 75ns, 75ns
• InputType: DC
• OutputType: Open Collector, Schottky Clamped
• OutputCurrent: 50mA
• IsolationVoltage: 3750Vrms
• InputForwardVoltage: 1.5V
• SupplyVoltage: 4.5V to 5.5V
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
