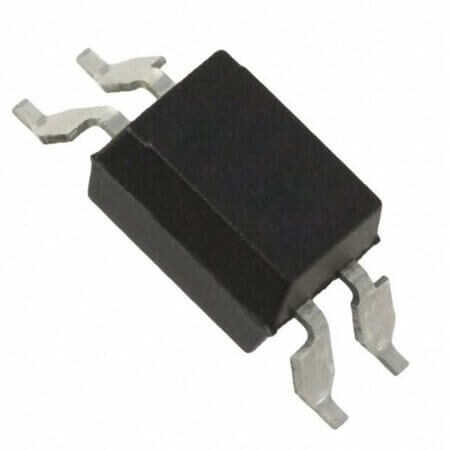

HCPL-814-500E IC-814 PHOTOTRANSISTOR AC INPUT OPTOC. SO4 AVAGO

HCPL-814-500E IC-814 PHOTOTRANSISTOR AC INPUT OPTOC. SO4 AVAGO Description

The HCPL-814-500E IC-814 PHOTOTRANSISTOR AC INPUT OPTOC. SO4 AVAGO The HCPL-814-500E by AVAGO-BROADCOM is a cutting-edge phototransistor optocoupler designed for reliable and efficient isolation. With an output voltage of 35V and an output current of 50mA, it ensures excellent performance across various systems. This optocoupler features an isolation voltage of 5000Vrms and a forward voltage of 1.2V, making it suitable for demanding applications. Operating in a temperature range of -30°C~+100°C, the HCPL-814-500E is built to withstand challenging environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this optocoupler is the ideal choice for advanced electronic designs.

HCPL-814-500E IC-814 PHOTOTRANSISTOR AC INPUT OPTOC. SO4 AVAGO Technical Specifications

• Features: Phototransistor Optocoupler
• Manufacturer: AVAGO-BROADCOM
• MountingType: SMT
• Package   /Case: SMD4
• Number   ofChannel: 1
• Current   TransferRatio: %20 - %300
• OutputVoltage: 35V
• OutputCurrent: 50mA
• IsolationVoltage: 5000Vrms
• ForwardVoltage: 1.2V
• OperatingTemperature: -30°C~+100°C
• Rohs: ROHS
• Packaging: TAPE&REEL
