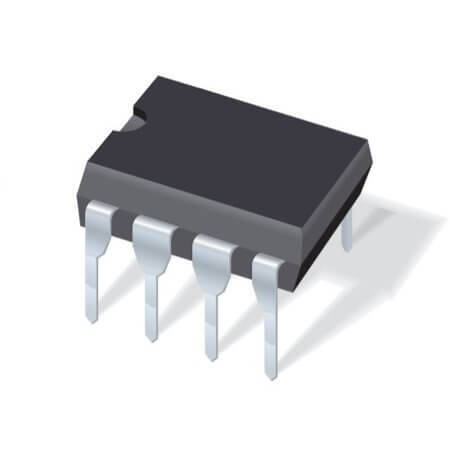

HCPL-2211 IC-2201 OPTOISO 3.75KV PUSH PULL 8DIP

HCPL-2211 IC-2201 OPTOISO 3.75KV PUSH PULL 8DIP Description

HCPL-2211 IC-2201 OPTOISO 3.75KV PUSH PULL 8DIP The product HCPL-2211 (IC-2201 OPTOISO 3.75KV PUSH PULL 8DIP) is a high-performance logic-output optocoupler designed for robust electrical isolation and signal transfer. Manufactured by a trusted supplier, it features a propagation delay of 300ns, 300ns, an input type of DC, and an output type of Push-Pull, Totem Pole. The optocoupler supports an output current of 25mA and an isolation voltage of 3750Vrms, ensuring reliable operation in diverse applications. With an input forward voltage of 1.5V, a supply voltage range of 4.5V to 20V, and an operating temperature range of -40°C~+85°C, it is both versatile and durable. Compliant with RoHS standards, this optocoupler is available in TUBE packaging, making it a reliable choice for modern electronic systems.

HCPL-2211 IC-2201 OPTOISO 3.75KV PUSH PULL 8DIP Technical Specifications

• Manufacturer: AVAGO-BROADCOM
• Features: Very High CMR, Wide VCC Logic Gate Optocouplers
• MountingType: THT
• Package/Case: DIP8
• NumberofChannel: 1
• PropagationDelayTime(Low/High): 300ns, 300ns
• InputType: DC
• OutputType: Push-Pull, Totem Pole
• OutputCurrent: 25mA
• IsolationVoltage: 3750Vrms
• InputForwardVoltage: 1.5V
• SupplyVoltage: 4.5V to 20V
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
