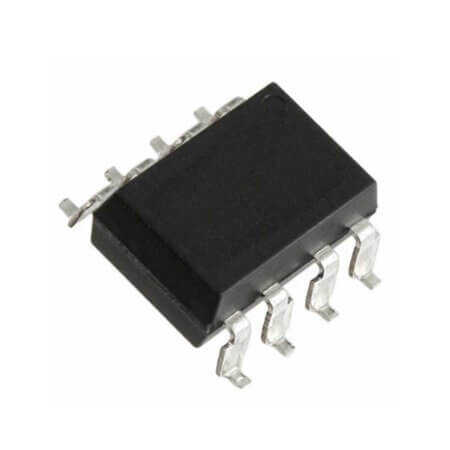

HCPL-2200-300E OPTOISOLATOR 3.75KV TRI-STATE SMD8 GW

HCPL-2200-300E OPTOISOLATOR 3.75KV TRI-STATE SMD8 GW Description

HCPL-2200-300E OPTOISOLATOR 3.75KV TRI-STATE SMD8 GW The product HCPL-2200-300E (OPTOISOLATOR 3.75KV TRI-STATE SMD8 GW) is a high-performance logic-output optocoupler designed for robust electrical isolation and signal transfer. Manufactured by a trusted supplier, it features a propagation delay of 300ns, 300ns, an input type of DC, and an output type of Tri-State. The optocoupler supports an output current of 25mA and an isolation voltage of 3750Vrms, ensuring reliable operation in diverse applications. With an input forward voltage of 1.5V, a supply voltage range of 4.5V to 20V, and an operating temperature range of -40°C~+85°C, it is both versatile and durable. Compliant with RoHS standards, this optocoupler is available in TUBE packaging, making it a reliable choice for modern electronic systems.

HCPL-2200-300E OPTOISOLATOR 3.75KV TRI-STATE SMD8 GW Technical Specifications

• Manufacturer: AVAGO-BROADCOM
• Features: Low Input Current Logic Gate Optocouplers
• MountingType: SMT
• Package/Case: SMD8
• NumberofChannel: 1
• PropagationDelayTime(Low/High): 300ns, 300ns
• InputType: DC
• OutputType: Tri-State
• OutputCurrent: 25mA
• IsolationVoltage: 3750Vrms
• InputForwardVoltage: 1.5V
• SupplyVoltage: 4.5V to 20V
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
