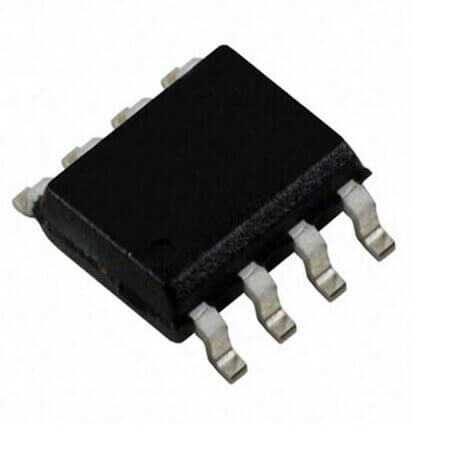

HCPL-0701-000E IC-0701 OPTOCOUPLER SGL DARL OUT SOIC8

HCPL-0701-000E IC-0701 OPTOCOUPLER SGL DARL OUT SOIC8 Description

The HCPL-0701-000E IC-0701 OPTOCOUPLER SGL DARL OUT SOIC8 The HCPL-0701-000E by BROADCOM is a cutting-edge phototransistor optocoupler designed for reliable and efficient isolation. With an output voltage of 18V and an output current of 60mA, it ensures excellent performance across various systems. This optocoupler features an isolation voltage of 3750Vrms and a forward voltage of 1.4V, making it suitable for demanding applications. Operating in a temperature range of -40°C~+85°C, the HCPL-0701-000E is built to withstand challenging environments. Compliant with ROHS standards and packaged in a TUBE format, this optocoupler is the ideal choice for advanced electronic designs.

HCPL-0701-000E IC-0701 OPTOCOUPLER SGL DARL OUT SOIC8 Technical Specifications

• Features: Low Input Current, High Gain Optocouplers
• Manufacturer: BROADCOM
• MountingType: SMT
• Package  /Case: SO8
• Number  ofChannel: 1
• Current  TransferRatio: %500 - %2600
• OutputVoltage: 18V
• OutputCurrent: 60mA
• IsolationVoltage: 3750Vrms
• ForwardVoltage: 1.4V
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TUBE
