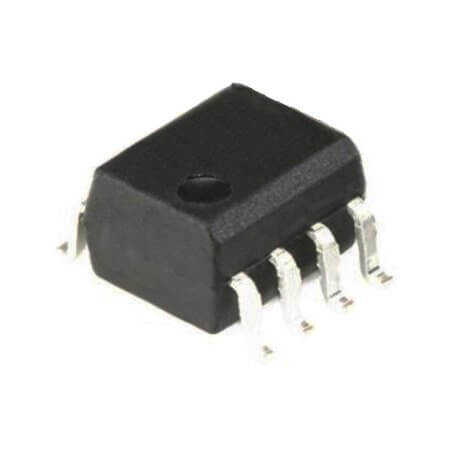

HCPL-0631 IC-0631 OPTOISOLATOR 3.75KV 2CH SOIC8

HCPL-0631 IC-0631 OPTOISOLATOR 3.75KV 2CH SOIC8 Description

HCPL-0631 IC-0631 OPTOISOLATOR 3.75KV 2CH SOIC8 The product HCPL-0631 (IC-0631 OPTOISOLATOR 3.75KV 2CH SOIC8) is a high-performance logic-output optocoupler designed for robust electrical isolation and signal transfer. Manufactured by a trusted supplier, it features a propagation delay of 100ns, 100ns, an input type of DC, and an output type of Open Collector, Schottky Clamped. The optocoupler supports an output current of 50mA and an isolation voltage of 3750Vrms, ensuring reliable operation in diverse applications. With an input forward voltage of 1.5V, a supply voltage range of 4.5V to 5.5V, and an operating temperature range of -40°C~+85°C, it is both versatile and durable. Compliant with RoHS standards, this optocoupler is available in TUBE packaging, making it a reliable choice for modern electronic systems.

HCPL-0631 IC-0631 OPTOISOLATOR 3.75KV 2CH SOIC8 Technical Specifications

• Manufacturer: BROADCOM
• Features: High CMR High Speed TTL Compatible Optocouplers
• MountingType: SMT
• Package/Case: SO8
• NumberofChannel: 1
• PropagationDelayTime(Low/High): 100ns, 100ns
• InputType: DC
• OutputType: Open Collector, Schottky Clamped
• OutputCurrent: 50mA
• IsolationVoltage: 3750Vrms
• InputForwardVoltage: 1.5V
• SupplyVoltage: 4.5V to 5.5V
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
