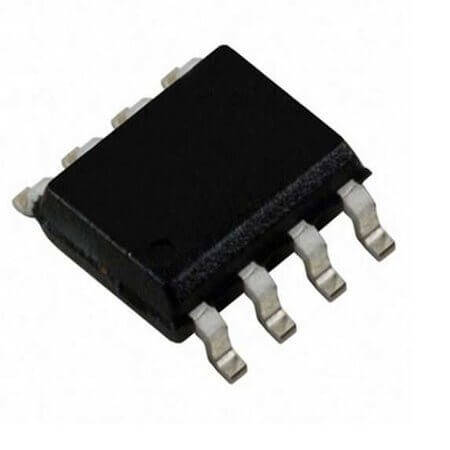

HCPL-0501-500E IC-0501 OPTOISOLATOR 3.75KV 1CH 8-SOIC

HCPL-0501-500E IC-0501 OPTOISOLATOR 3.75KV 1CH 8-SOIC Description

The HCPL-0501-500E IC-0501 OPTOISOLATOR 3.75KV 1CH 8-SOIC The HCPL-0501-500E by BROADCOM is a cutting-edge phototransistor optocoupler designed for reliable and efficient isolation. With an output voltage of 20V and an output current of 8mA, it ensures excellent performance across various systems. This optocoupler features an isolation voltage of 3750Vrms and a forward voltage of 1.5V, making it suitable for demanding applications. Operating in a temperature range of -55°C~+100°C, the HCPL-0501-500E is built to withstand challenging environments. Compliant with ROHS standards and packaged in a TAPE&REEL format, this optocoupler is the ideal choice for advanced electronic designs.

HCPL-0501-500E IC-0501 OPTOISOLATOR 3.75KV 1CH 8-SOIC Technical Specifications

• Features: Single Channel High Speed Optocouplers
• Manufacturer: BROADCOM
• MountingType: SMT
• Package  /Case: SO8
• Number  ofChannel: 1
• Current  TransferRatio: %15
• OutputVoltage: 20V
• OutputCurrent: 8mA
• IsolationVoltage: 3750Vrms
• ForwardVoltage: 1.5V
• OperatingTemperature: -55°C~+100°C
• Rohs: ROHS
• Packaging: TAPE&REEL
