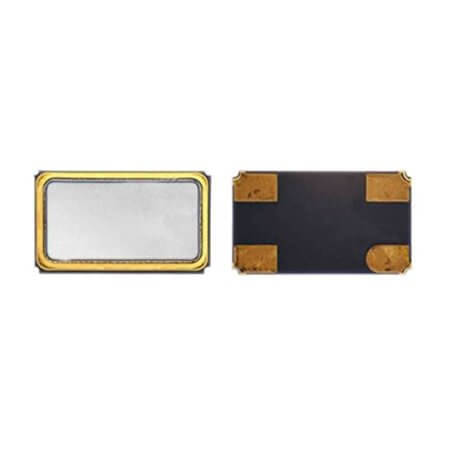

H130B-8.000-18-3030-EXT- CRYSTAL 8.0000MHZ 18PF SMD

H130B-8.000-18-3030-EXT- CRYSTAL 8.0000MHZ 18PF SMD Description

H130B-8.000-18-3030-EXT- CRYSTAL 8.0000MHZ 18PF SMD H130B-8.000-18-3030-EXT- is a high-performance crystal component that operates at a frequency of 8MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 85 Ohms. Compact dimensions: length 5.00mm, width 3.20mm, and height 1.00mm. Supports a temperature range of -40°C~+85°C for reliable performance. Manufactured by RALTRON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

H130B-8.000-18-3030-EXT- CRYSTAL 8.0000MHZ 18PF SMD Technical Specifications

• Manufacturer: RALTRON
• MountingType: SMT
• Series: H130B
• Package/Case: 4-SMD
• Frequency: 8MHz
• Capacitance: 16pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 85 Ohms
• Applications:
• Diameter:
• Length: 5.00mm
• Width: 3.20mm
• Height: 1.00mm
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
