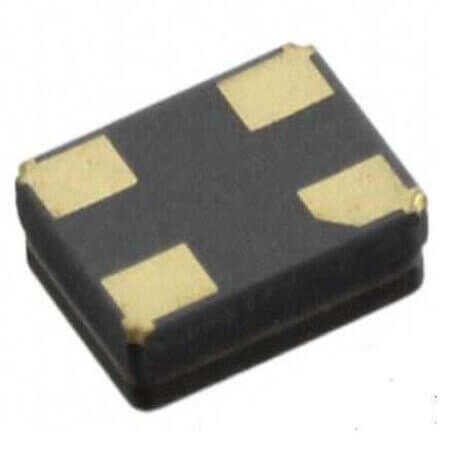

H120B-12.000-18-3030-TR CRYSTAL 12MHZ 30PPM 18pF SMD TR RALTRON

H120B-12.000-18-3030-TR CRYSTAL 12MHZ 30PPM 18pF SMD TR RALTRON Description

H120B-12.000-18-3030-TR CRYSTAL 12MHZ 30PPM 18pF SMD TR RALTRON H120B-12.000-18-3030-TR is a high-performance crystal component that operates at a frequency of 12MHz with a frequency stability of ±30PPM.Features equivalent series resistance (ESR) of 90 Ohms. Compact dimensions: length 4.00mm, width 2.50mm, and height 0.90mm. Supports a temperature range of -20°C~+70°C for reliable performance. Manufactured by RALTRON with compliance to ROHS standards. Packaged as TAPE&REEL for convenience.

H120B-12.000-18-3030-TR CRYSTAL 12MHZ 30PPM 18pF SMD TR RALTRON Technical Specifications

• Manufacturer: RALTRON
• MountingType: SMT
• Series: H120B
• Package/Case: 4-SMD
• Frequency: 12MHz
• Capacitance: 18pF
• FrequencyTolerance: ±30PPM
• FrequencyStability: ±30PPM
• EquivalentSeriesResistance(ESR): 90 Ohms
• Applications:
• Diameter:
• Length: 4.00mm
• Width: 2.50mm
• Height: 0.90mm
• OperatingTemperature: -20°C~+70°C
• Rohs: ROHS
• Packaging: TAPE&REEL

---

You can click for product datasheet.
