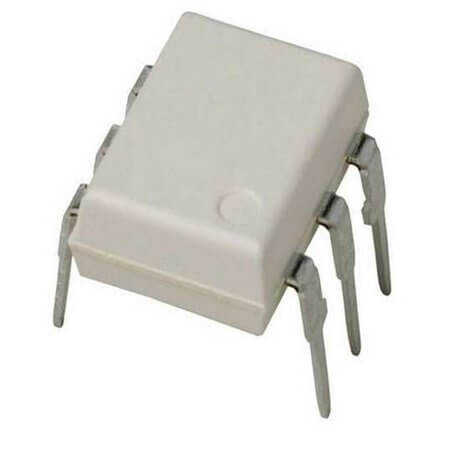

H11L1M IC-11L1M OPTOISO 4.17KV OPEN COLLECTOR 6DIP

H11L1M IC-11L1M OPTOISO 4.17KV OPEN COLLECTOR 6DIP Description

H11L1M IC-11L1M OPTOISO 4.17KV OPEN COLLECTOR 6DIP The product H11L1M (IC-11L1M OPTOISO 4.17KV OPEN COLLECTOR 6DIP) is a high-performance logic-output optocoupler designed for robust electrical isolation and signal transfer. Manufactured by a trusted supplier, it features a propagation delay of 4us, 4us, an input type of DC, and an output type of Open Collector. The optocoupler supports an output current of 50mA and an isolation voltage of 4170Vrms, ensuring reliable operation in diverse applications. With an input forward voltage of 1.2V, a supply voltage range of 3V to 15V, and an operating temperature range of -40°C~+85°C, it is both versatile and durable. Compliant with RoHS standards, this optocoupler is available in TUBE packaging, making it a reliable choice for modern electronic systems.

H11L1M IC-11L1M OPTOISO 4.17KV OPEN COLLECTOR 6DIP Technical Specifications

• Manufacturer: ONS (FAIRCHILD)
• Features: 6-Pin DIP Schmitt Trigger Output Optocoupler
• MountingType: THT
• Package/Case: DIP6
• NumberofChannel: 1
• PropagationDelayTime(Low/High): 4us, 4us
• InputType: DC
• OutputType: Open Collector
• OutputCurrent: 50mA
• IsolationVoltage: 4170Vrms
• InputForwardVoltage: 1.2V
• SupplyVoltage: 3V to 15V
• OperatingTemperature: -40°C~+85°C
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
