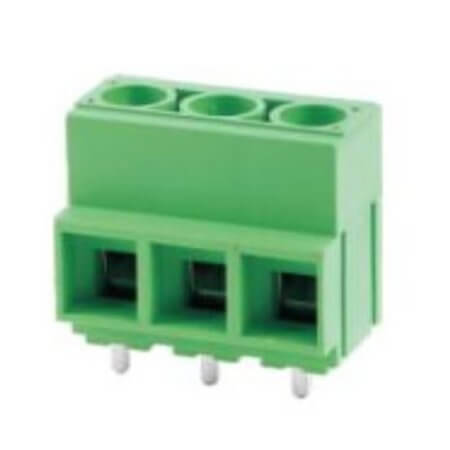

GT135T-10.16-03P-14-00AH TERM BLOCK WB 29.3MM 10.16MM 3P 180° GREEN

GT135T-10.16-03P-14-00AH TERM BLOCK WB 29.3MM 10.16MM 3P 180° GREEN Description

GT135T-10.16-03P-14-00AH TERM BLOCK WB 29.3MM 10.16MM 3P 180° GREEN GT135T-10.16-03P-14-00AH is a reliable and efficient PCB terminal that supports an operating temperature range of -40°C~+105°C. Designed for wire gauges 20-6 AWG (10.0 mm²). Constructed using PA66+UL94V-0 housing, Brass+Ni Plated clamps, and Brass+Tin Plated pins for durability. Manufactured by GOLTEN with compliance to ROHS standards. Packaged in BULK packaging for secure handling.

GT135T-10.16-03P-14-00AH TERM BLOCK WB 29.3MM 10.16MM 3P 180° GREEN Technical Specifications

• Manufacturer: GOLTEN
• Series: GT135T
• Gender: Male
• WireTermination: Screw
• NumberofPins: 3 Pins
• NumberOfLevel: 1
• PositionsOfLevel: 3
• Pitch: 10.16mm
• MountingType: THT R/A
• WireEntry: 180°
• ProfileHeight: 29.50mm
• Current: 52.0A
• Voltage: 300V
• OperatingTemperature: -40°C~+105°C
• WireGauge(AWG): 20-6 AWG
• WireGauge(mm²): 10.0 mm²
• HousingMaterial: PA66+UL94V-0
• ClampMaterial: Brass+Ni Plated
• PinMaterial: Brass+Tin Plated
• Color: Green
• Side: None
• Rohs: ROHS
• BULK: BULK

---

You can click for product datasheet.
