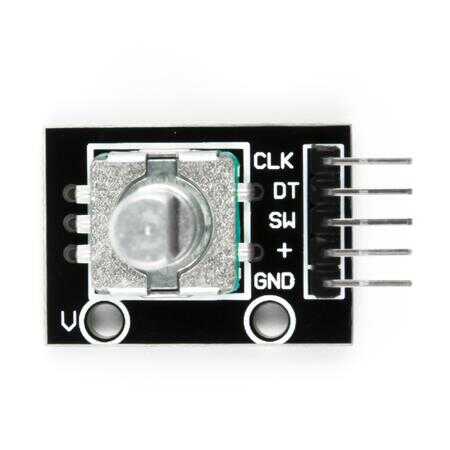

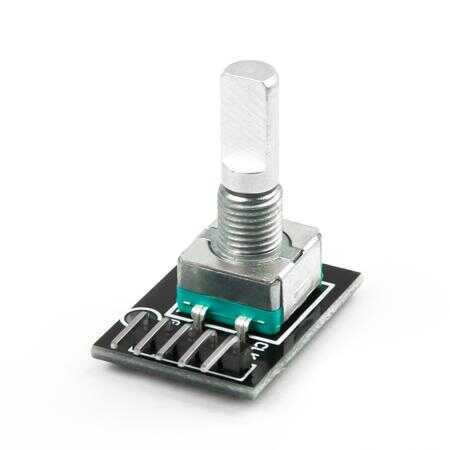

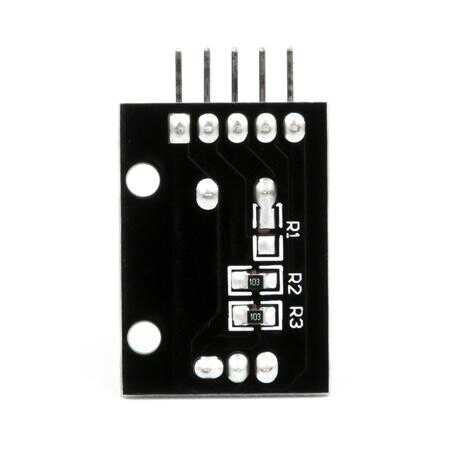

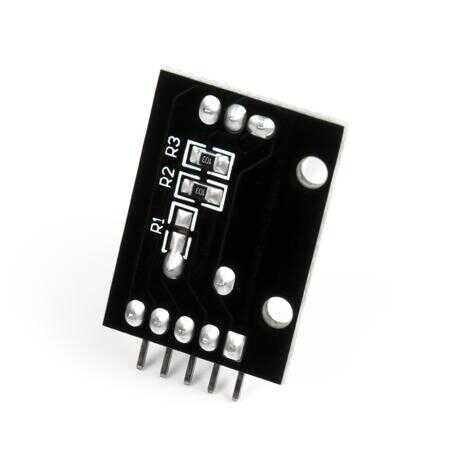

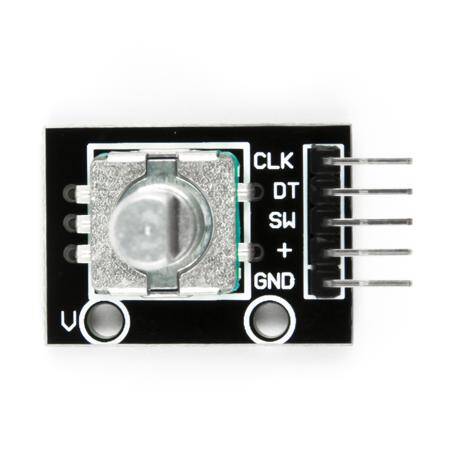

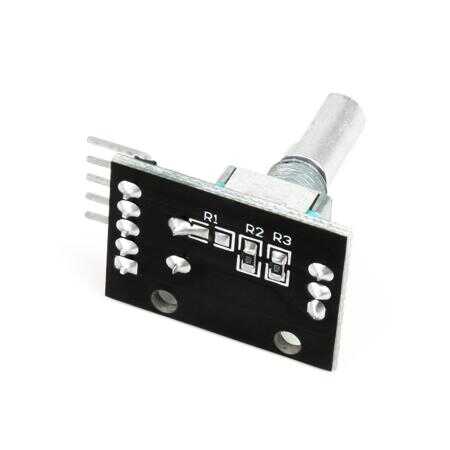

Green Rotary Encoder Module for Arduino With Demo Code

Green Rotary Encoder Module Description

The Green Rotary Encoder Module is a high-performance input device designed for detecting rotational position, direction, and speed. This module features a sleek green design and includes an incremental rotary encoder along with a built-in push-button, adding versatility to your projects. Ideal for Arduino and Raspberry Pi platforms, this encoder module simplifies your development process with included demo code, making it suitable for a variety of applications such as robotics, user interfaces, and DIY electronics projects.

Green Rotary Encoder Module Features

• Rotational Precision: Accurately detects position and directional changes.
• Integrated Push-Button: Adds functionality for menu navigation or control inputs.
• Stylish Green Design: Enhances the aesthetic of your project setup.
• Wide Compatibility: Works seamlessly with Arduino, Raspberry Pi, and other development boards.
• Demo Code Included: Enables quick and hassle-free integration.

Green Rotary Encoder Module Specifications

• Operating Voltage: 3.3V to 5V DC
• Output Signal: Two-phase (A and B) incremental pulse signal
• Push-Button Function: Integrated tactile switch (active low)
• Pins: CLK, DT, SW, VCC, GND
• Dimensions: 32mm x 19mm x 30mm (including knob)

Green Rotary Encoder Module Applications

• Menu Navigation: Easily scroll through and select menu options on displays.
• Audio Control: Adjust volume or other sound settings with precision.
• Robotics: Monitor and control rotational motion in robotic systems.
• Gaming: Use in custom gaming controllers for intuitive input control.
• DIY Electronics: Ideal for hobbyists creating interactive gadgets or prototypes.
