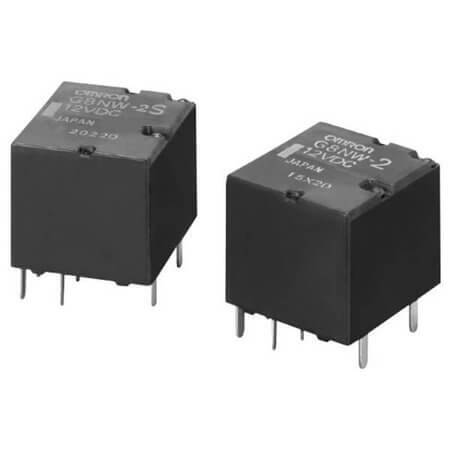

G8NW-2H-DC12 RELAY AUTOMOTIVE SPDT 30A 12V

G8NW-2H-DC12 RELAY AUTOMOTIVE SPDT 30A 12V Description

G8NW-2H-DC12 RELAY AUTOMOTIVE SPDT 30A 12V G8NW-2H-DC12 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 16VDC - Max and coil resistance of 180 Ohms. Features a coil power of nan and operates within a temperature range of -40°C~+105°C.Compact design with dimensions: length 14.30mm, width 15.70mm, and height 13.80mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TRAY for convenience.

G8NW-2H-DC12 RELAY AUTOMOTIVE SPDT 30A 12V Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Automotive
• Series: G8NW
• MountingType: THT
• ContactForm: SPDT (1 Form Cx2)
• CoilType: Non Latching
• ContactCurrent(Nom): 30A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 66.70mA
• ContactVoltage: 16VDC - Max
• CoilResistance: 180 Ohms
• CoilPower:
• OperatingTemperature: -40°C~+105°C
• NumberofPins: 10 Pin
• Length: 14.30mm
• Width: 15.70mm
• Height: 13.80mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
