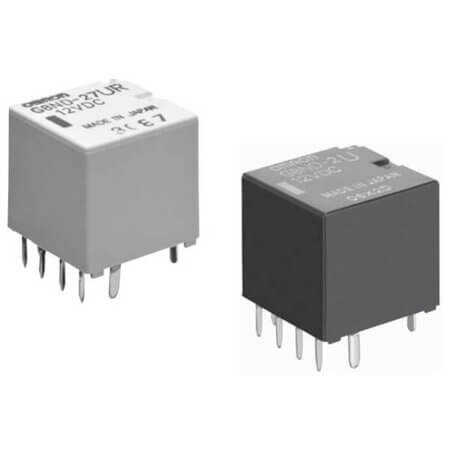

G8ND-2S-DC12 RELAY AUTOMOTIVE 30A 12V SPDT

G8ND-2S-DC12 RELAY AUTOMOTIVE 30A 12V SPDT Description

G8ND-2S-DC12 RELAY AUTOMOTIVE 30A 12V SPDT G8ND-2S-DC12 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 16VDC - Max and coil resistance of 180 Ohms. Features a coil power of 800mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 14.50mm, width 14.10mm, and height 14.00mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TUBE for convenience.

G8ND-2S-DC12 RELAY AUTOMOTIVE 30A 12V SPDT Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Automotive
• Series: G8ND
• MountingType: THT
• ContactForm: SPDT (1 Form Cx2)
• CoilType: Non Latching
• ContactCurrent(Nom): 30A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 66.70mA
• ContactVoltage: 16VDC - Max
• CoilResistance: 180 Ohms
• CoilPower: 800mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 14.50mm
• Width: 14.10mm
• Height: 14.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
