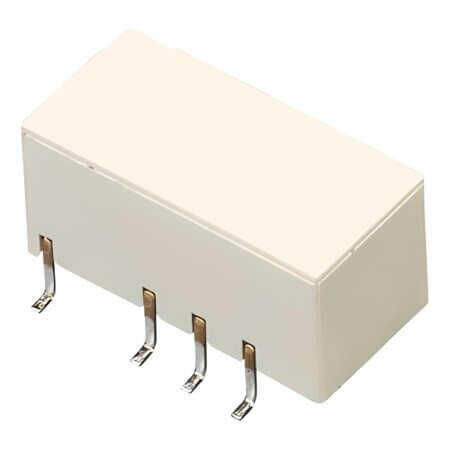

G6SK-2F-TR DC3 RELAY TELECOM DPDT 2A 3VDC

G6SK-2F-TR DC3 RELAY TELECOM DPDT 2A 3VDC Description

G6SK-2F-TR DC3 RELAY TELECOM DPDT 2A 3VDC G6SK-2F-TR DC3 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/220VDC - Max and coil resistance of 45 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 14.80mm, width 7.30mm, and height 9.20mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TUBE for convenience.

G6SK-2F-TR DC3 RELAY TELECOM DPDT 2A 3VDC Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Telecom
• Series: G6S
• MountingType: SMT
• ContactForm: DPDT (2 Form C)
• CoilType: Latching, Dual Coil
• ContactCurrent(Nom): 2A
• ContactCurrent(Max):
• CoilVoltage: 3VDC
• CoilCurrent: 66.60mA
• ContactVoltage: 250VAC/220VDC - Max
• CoilResistance: 45 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 10 Pin
• Length: 14.80mm
• Width: 7.30mm
• Height: 9.20mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
