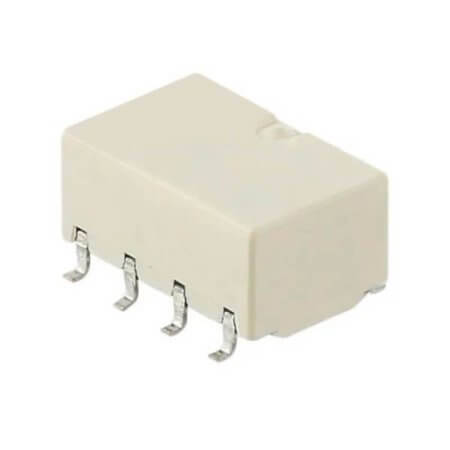

G6K-2F-DC12 RELAY 1A 12VDC TELECOM DPDT

G6K-2F-DC12 RELAY 1A 12VDC TELECOM DPDT Description

G6K-2F-DC12 RELAY 1A 12VDC TELECOM DPDT G6K-2F-DC12 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 125VAC/30VDC and coil resistance of 1.30K Ohms. Features a coil power of 100mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 10.00mm, width 6.50mm, and height 5.20mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TUBE for convenience.

G6K-2F-DC12 RELAY 1A 12VDC TELECOM DPDT Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay General
• Series: G6K
• MountingType: SMT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max): 2A
• CoilVoltage: 12VDC
• CoilCurrent: 9.10mA
• ContactVoltage: 125VAC/30VDC
• CoilResistance: 1.30K Ohms
• CoilPower: 100mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 8 Pin
• Length: 10.00mm
• Width: 6.50mm
• Height: 5.20mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
