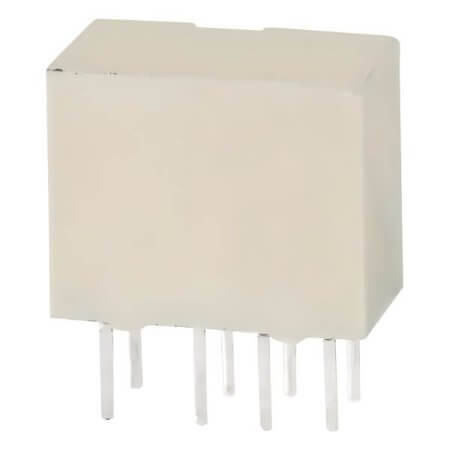

G6J-2P-Y DC5 RELAY 1A 5VDC 2PNC TELECOM OMRON

G6J-2P-Y DC5 RELAY 1A 5VDC 2PNC TELECOM OMRON Description

G6J-2P-Y DC5 RELAY 1A 5VDC 2PNC TELECOM OMRON G6J-2P-Y DC5 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 125VAC/110VDC - Max and coil resistance of 173.10 Ohms. Features a coil power of 140mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 10.60mm, width 5.70mm, and height 9.00mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TUBE for convenience.

G6J-2P-Y DC5 RELAY 1A 5VDC 2PNC TELECOM OMRON Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Telecom
• Series: G6J
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max):
• CoilVoltage: 5VDC
• CoilCurrent: 28.90mA
• ContactVoltage: 125VAC/110VDC - Max
• CoilResistance: 173.10 Ohms
• CoilPower: 140mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 8 Pin
• Length: 10.60mm
• Width: 5.70mm
• Height: 9.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
