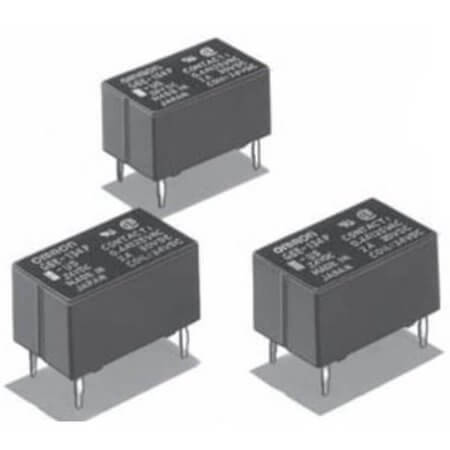

G6E-134P-US DC5 RELAY GENERAL PURPOSE SPDT 2A 5V

G6E-134P-US DC5 RELAY GENERAL PURPOSE SPDT 2A 5V Description

G6E-134P-US DC5 RELAY GENERAL PURPOSE SPDT 2A 5V G6E-134P-US DC5 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 125VAC/30VDC and coil resistance of 125 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 16.00mm, width 10.00mm, and height 8.00mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TUBE for convenience.

G6E-134P-US DC5 RELAY GENERAL PURPOSE SPDT 2A 5V Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Telecom
• Series: G6E
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 2A
• ContactCurrent(Max):
• CoilVoltage: 5VDC
• CoilCurrent: 40mA
• ContactVoltage: 125VAC/30VDC
• CoilResistance: 125 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 5 Pin
• Length: 16.00mm
• Width: 10.00mm
• Height: 8.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
