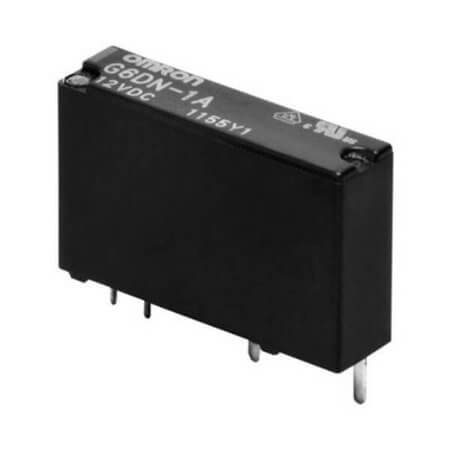

G6DN-1A-L DC12 RELAY 5A 12V SPST

G6DN-1A-L DC12 RELAY 5A 12V SPST Description

G6DN-1A-L DC12 RELAY 5A 12V SPST G6DN-1A-L DC12 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/30VDC and coil resistance of 800 Ohms. Features a coil power of 180mW and operates within a temperature range of -25°C~+90°C.Compact design with dimensions: length 20.00mm, width 5.08mm, and height 12.50mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TUBE for convenience.

G6DN-1A-L DC12 RELAY 5A 12V SPST Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Power Slim
• Series: G6DN
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 5A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 15mA
• ContactVoltage: 250VAC/30VDC
• CoilResistance: 800 Ohms
• CoilPower: 180mW
• OperatingTemperature: -25°C~+90°C
• NumberofPins: 4 Pin
• Length: 20.00mm
• Width: 5.08mm
• Height: 12.50mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
