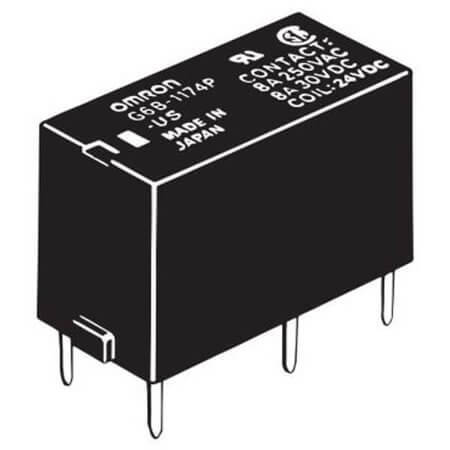

G6B-1174P-US-DC12 RELAY GEN PURPOSE SPST 8A 12V

G6B-1174P-US-DC12 RELAY GEN PURPOSE SPST 8A 12V Description

G6B-1174P-US-DC12 RELAY GEN PURPOSE SPST 8A 12V G6B-1174P-US-DC12 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 380VAC/125VDC - Max and coil resistance of 720 Ohms. Features a coil power of 200mW and operates within a temperature range of -25°C~+70°C.Compact design with dimensions: length 20.00mm, width 10.00mm, and height 12.50mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as BULK for convenience.

G6B-1174P-US-DC12 RELAY GEN PURPOSE SPST 8A 12V Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Power
• Series: G6B
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 8A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 16.70mA
• ContactVoltage: 380VAC/125VDC - Max
• CoilResistance: 720 Ohms
• CoilPower: 200mW
• OperatingTemperature: -25°C~+70°C
• NumberofPins: 4 Pin
• Length: 20.00mm
• Width: 10.00mm
• Height: 12.50mm
• Rohs: ROHS
• Packaging: BULK

---

You can click for product datasheet.
