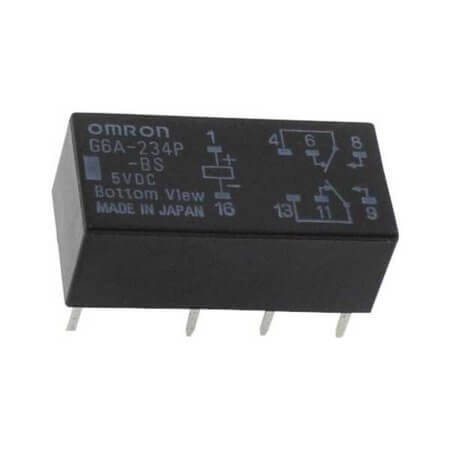

G6A-234P-BS-DC5 RELAY 1A 5VDC

G6A-234P-BS-DC5 RELAY 1A 5VDC Description

G6A-234P-BS-DC5 RELAY 1A 5VDC G6A-234P-BS-DC5 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 125VAC/30VDC and coil resistance of 125 Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 20.20mm, width 10.10mm, and height 8.40mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TUBE for convenience.

G6A-234P-BS-DC5 RELAY 1A 5VDC Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Telecom
• Series: P-24
• MountingType: THT
• ContactForm: DPDT (2 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom):
• ContactCurrent(Max): 3A
• CoilVoltage: 5VDC
• CoilCurrent: 40mA
• ContactVoltage: 125VAC/30VDC
• CoilResistance: 125 Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins:
• Length: 20.20mm
• Width: 10.10mm
• Height: 8.40mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
