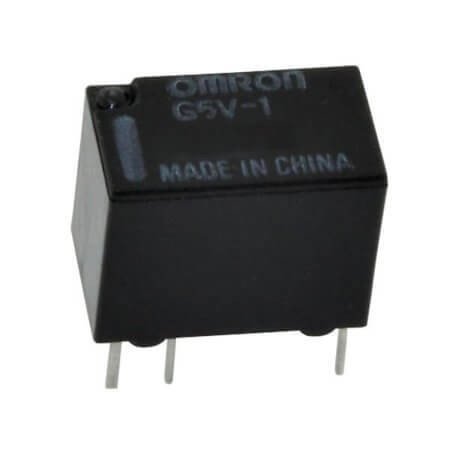

G5V-1-DC12 RELAY 1A 12V SPDT 1FormC

G5V-1-DC12 RELAY 1A 12V SPDT 1FormC Description

G5V-1-DC12 RELAY 1A 12V SPDT 1FormC G5V-1-DC12 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 125VAC/60VDC - Max and coil resistance of 960 Ohms. Features a coil power of 150mW and operates within a temperature range of -40°C~+70°C.Compact design with dimensions: length 12.50mm, width 7.50mm, and height 10.00mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TUBE for convenience.

G5V-1-DC12 RELAY 1A 12V SPDT 1FormC Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay General
• Series: G5V
• MountingType: THT
• ContactForm: SPDT (1 Form C)
• CoilType: Non Latching
• ContactCurrent(Nom): 1A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 12.50mA
• ContactVoltage: 125VAC/60VDC - Max
• CoilResistance: 960 Ohms
• CoilPower: 150mW
• OperatingTemperature: -40°C~+70°C
• NumberofPins: 6 Pin
• Length: 12.50mm
• Width: 7.50mm
• Height: 10.00mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
