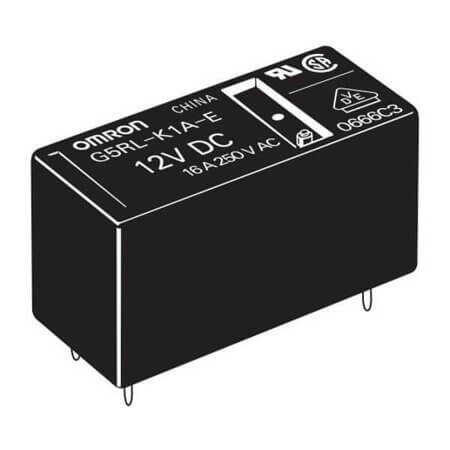

G5RL-K1A-E-DC12 RELAY POWER LATCH SPST 16A 12VDC

G5RL-K1A-E-DC12 RELAY POWER LATCH SPST 16A 12VDC Description

G5RL-K1A-E-DC12 RELAY POWER LATCH SPST 16A 12VDC G5RL-K1A-E-DC12 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/24VDC - Max and coil resistance of 192 Ohms. Features a coil power of 750mW and operates within a temperature range of -25°C~+85°C.Compact design with dimensions: length 29.00mm, width 12.70mm, and height 15.70mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TUBE for convenience.

G5RL-K1A-E-DC12 RELAY POWER LATCH SPST 16A 12VDC Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Power
• Series: G5RL
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Latching, Dual Coil
• ContactCurrent(Nom): 16A
• ContactCurrent(Max):
• CoilVoltage: 12VDC
• CoilCurrent: 62.50mA
• ContactVoltage: 250VAC/24VDC - Max
• CoilResistance: 192 Ohms
• CoilPower: 750mW
• OperatingTemperature: -25°C~+85°C
• NumberofPins: 7 Pin
• Length: 29.00mm
• Width: 12.70mm
• Height: 15.70mm
• Rohs: ROHS
• Packaging: TUBE

---

You can click for product datasheet.
