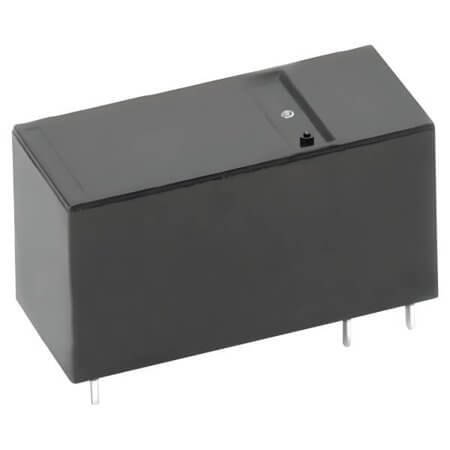

G5RL-1A-E-HR DC24 RELAY 16A 24VDC (1 Form A)

G5RL-1A-E-HR DC24 RELAY 16A 24VDC (1 Form A) Description

G5RL-1A-E-HR DC24 RELAY 16A 24VDC (1 Form A) G5RL-1A-E-HR DC24 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 250VAC/24VDC and coil resistance of 1.44K Ohms. Features a coil power of 400mW and operates within a temperature range of -40°C~+85°C.Compact design with dimensions: length 29.00mm, width 12.70mm, and height 15.70mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TRAY for convenience.

G5RL-1A-E-HR DC24 RELAY 16A 24VDC (1 Form A) Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Power
• Series: G5RL
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 16A
• ContactCurrent(Max):
• CoilVoltage: 24VDC
• CoilCurrent: 16.70mA
• ContactVoltage: 250VAC/24VDC
• CoilResistance: 1.44K Ohms
• CoilPower: 400mW
• OperatingTemperature: -40°C~+85°C
• NumberofPins: 6 Pin
• Length: 29.00mm
• Width: 12.70mm
• Height: 15.70mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
