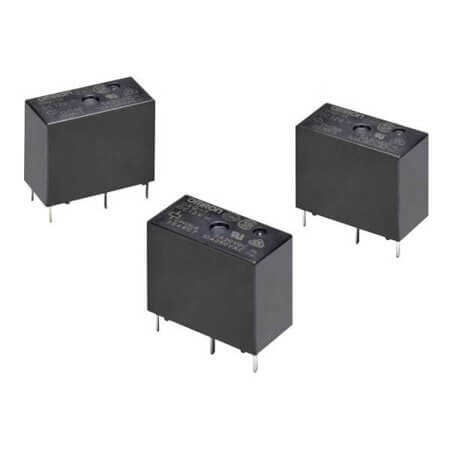

G5Q-1A DC24 RELAY POWER 10A 24VDC SPST-NO

G5Q-1A DC24 RELAY POWER 10A 24VDC SPST-NO Description

G5Q-1A DC24 RELAY POWER 10A 24VDC SPST-NO G5Q-1A DC24 is a reliable and efficient general relay that designed for N/A applications with a contact voltage of 277VAC/30VDC and coil resistance of 2.88K Ohms. Features a coil power of 200mW and operates within a temperature range of -40°C~+105°C.Compact design with dimensions: length 20.30mm, width 15.80mm, and height 10.30mm.Manufactured by OMRON and compliant with ROHS standards. Packaged as TRAY for convenience.

G5Q-1A DC24 RELAY POWER 10A 24VDC SPST-NO Technical Specifications

• Manufacturer: OMRON
• RelayType: Relay Power Slim
• Series: G5Q
• MountingType: THT
• ContactForm: SPST-NO (1 Form A)
• CoilType: Non Latching
• ContactCurrent(Nom): 3A
• ContactCurrent(Max): 10A
• CoilVoltage: 24VDC
• CoilCurrent: 8.30mA
• ContactVoltage: 277VAC/30VDC
• CoilResistance: 2.88K Ohms
• CoilPower: 200mW
• OperatingTemperature: -40°C~+105°C
• NumberofPins: 4 Pin
• Length: 20.30mm
• Width: 15.80mm
• Height: 10.30mm
• Rohs: ROHS
• Packaging: TRAY

---

You can click for product datasheet.
